Bruceb 19-02-2014 09:47

power draw allowed on solenoid breakout

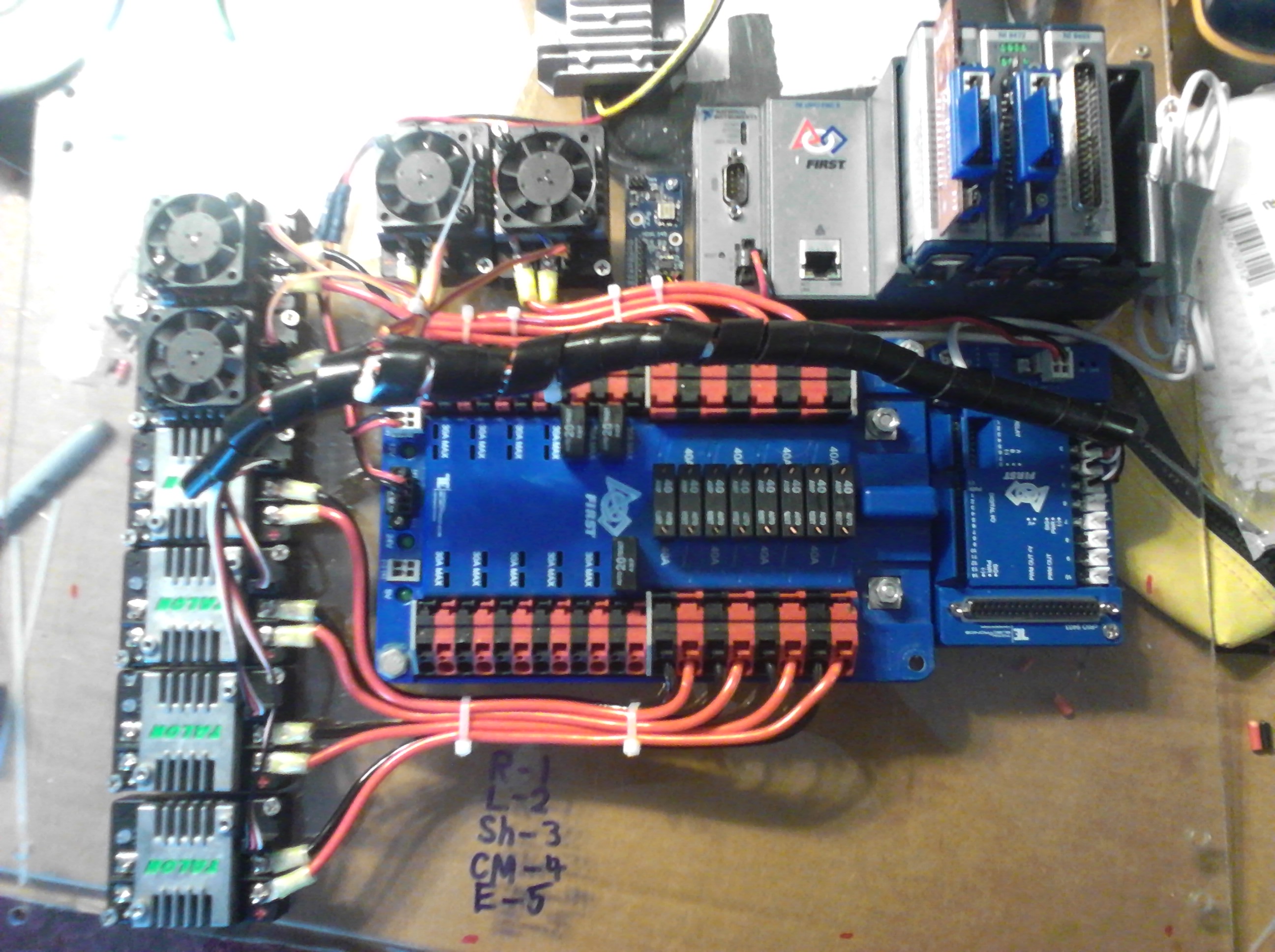

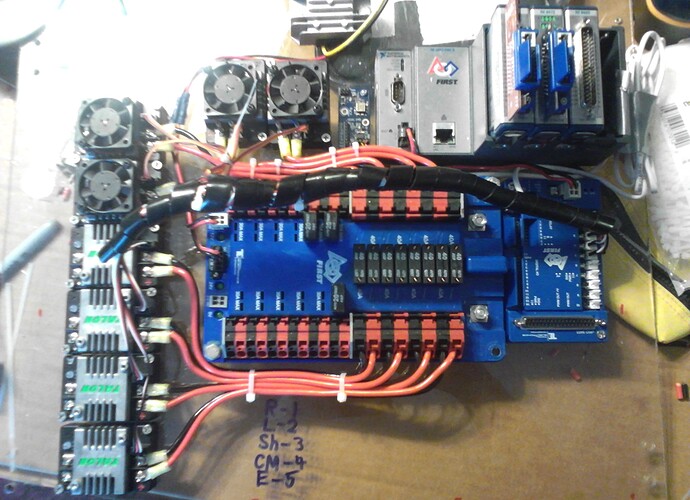

So the manual says that if I have a 4 port crio the maximum power I can draw from the solenoid breakout is 21w. Does it matter if that is all from one set of pins or is there a limit to how much I can draw from a pair of pins?
We are running 4 valves that draw 3w each and want to wire them all to the same set of pins to be controlled all at once.
12W at 24V is .5A Can a set of pins handle 500mA?

Bruceb 19-02-2014 09:55

Re: power draw allowed on solenoid breakout

Never mind. I found my answer here
http://www.usfirst.org/sites/default...20Breakout.pdf

A set of pins has a max current of .75A.

Thanks

FrankJ 19-02-2014 11:25

Re: power draw allowed on solenoid breakout

By rule (R51) you can only hook up one solenoid per output. So in this case can & may means two different things.

Andy A. 19-02-2014 13:02

Re: power draw allowed on solenoid breakout

As Frank pointed out there is a legal issue here.

Quote:

<R51> Each power regulating device may control electrical loads per Table 4-4. Unless otherwise noted, each power regulating device may control one and only one electrical load.
As I read it the rules are a little fuzzy, though. This is sort of lawyering but, because the breakout isn't exempted from the 'one and only one electrical load' part, strictly speaking <R51> would preclude attaching more than one solenoid (or any electrical load) to each breakout board. We know this not the intent or common interpretation, and the addition of the solenoid module/breakout board as a power regulating device wasn't made till the Valentines day team update. The table should probably make a specific allowance that the breakout board can control one load per channel and/or specify a maximum load for each channel. Note that <R69> already defines the maxium cumaltive load when powered by the 24v supply (16 or 21 watts, depending on C-rio type).

In any case, there's not much advantage in ganging multiple solenoids to one channel. Enabling multiple channels on the breakout board at the same time is trivial to do in programming and gives you far more flexibility. If you're out of outputs on the breakout you're also probably pushing the wattage limit defined in <R69>; not great for legal and technical reasons.

If you really want to run multiple solenoids off a single 'output', you can gang multiple pneumatic relays off a single Spike relay. This requires the use of 12v solenoids, obviously, but it is explicitly allowed for in the rules.

Bruceb 19-02-2014 14:25

Re: power draw allowed on solenoid breakout

Hoping Big Al chimes in here but the issue is running out of ports. THe cumulative draw is no where near the 21W limit however.
We could add another 24V solenoid breakout but we really didn't want to.
If we use a spike and four 24V solenoids we could put connect them in 2S2P and this would also work I think.

Mark McLeod 19-02-2014 14:35

Re: power draw allowed on solenoid breakout

We can only have a single 24v solenoid breakout per the R42 rule.
We can have more 12v solenoid breakouts.

The Spikes can be used for 12v solenoids, but not for 24v.
They aren't rated for that.

Bruceb 19-02-2014 14:42

Re: power draw allowed on solenoid breakout

Dang
Thanks

Bruceb 19-02-2014 15:12

Re: power draw allowed on solenoid breakout

ya the spikes are out I was thinking backwards on the voltages.
Thanks again

FrankJ 19-02-2014 16:49

Re: power draw allowed on solenoid breakout

The rules actually say you can only power one solenoid breakout from the PD 24 supply. The question becomes can you use a custom circuit to power the second solenoid breakout at 24 V. Al was checking on that from another thread.

cgmv123 19-02-2014 17:36

Re: power draw allowed on solenoid breakout

Quote:

Originally Posted by FrankJ (Post 1346364)
The question becomes can you use a custom circuit to power the second solenoid breakout at 24 V. Al was checking on that from another thread.

Q237b says you can't.
