NEED HELP ASAP! Climbing


We are trying to design a mechanism to scale the tower! We want it to lock once it reaches the top so it doesn't back drive. We can't figure out how to do this. Can any one help.

Re: NEED HELP ASAP! Climbing


Re: NEED HELP ASAP! Climbing


A worm gear would do.

Re: NEED HELP ASAP! Climbing


There are several ways of doing this, one would be a ratchet and pawl mechanism:https://en.wikipedia.org/wiki/Ratchet_(device)

Another that is seen in FRC is a bike brake. This is a little more complicated, but a viable option.

Re: NEED HELP ASAP! Climbing


To prevent backdrive, you can use a disk or bike brake on the end of a drive shaft of an elevator that would raise/lower your robot. Team 696 used a pneumatic disk brake on their 2015 elevator.

EDIT: sniped

Re: NEED HELP ASAP! Climbing


With a hex shaft.

Re: NEED HELP ASAP! Climbing


548 actually used this on our shooter winch. We had a shifting gearbox with a CIM on it pulling back nylon webbing straps. When we "shifted", it detached the motor and CIM from the winch spool, allowing the shooter ram to extend.

Re: NEED HELP ASAP! Climbing


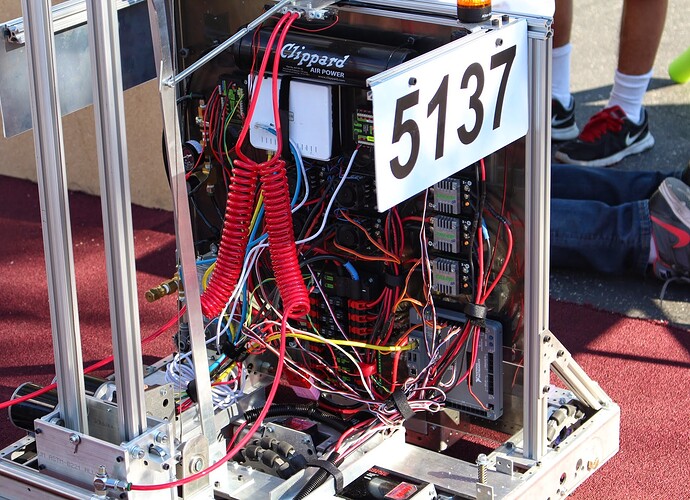

In 2015, we cut the teeth off of a sprocket, mounted it to a hex shaft using a hex hub, and straddled it using a pancake cylinder with pads on both sides of the sprocket to clamp down on it. We had something in the code so that if the brake was applied, there was no way the motor could revieve power to try to overpower the brake.

Re: NEED HELP ASAP! Climbing


depends on the ratio but don't be fooled, worm gears can still be back driven. We use 1:16 ones and they can be back driven pretty easily and certainly wouldn't hold a robots weight. A ratchet is the better answer

Re: NEED HELP ASAP! Climbing


this could do the trick if you're using a rope or cable

Re: NEED HELP ASAP! Climbing


https://cdn3.bigcommerce.com/s-t33k8...1280.j pg?c=2

I have used this to raise heavy loads up a tower. worked great :D
