Okay, as an offseason project, part of 1072 is making a mecanum drive.
first part (and probably the hardest) is the wheel.

here's our scheme for making one.. we'll make at least one over this break (its spring break for us) and report back how it is.. but if you see any glaring problems, please post asap.

Tools -
A Mill (Bridgeport in our case)
1/4 in end mill / drill bit
1 in , 3/4 shank end mill
Clamp set
Indicator
Vise
Edge finder

Materials -
3/4 plate 6 in x 36 in
Lab-stops (Mcmaster - 9545K15)
Generic 2 3/4, 1/4-20 bolts
1/4-20 nuts
retaining rings.

First, Take the plate, cut into 6 plates of 6 in x 6 in.
Next, bring to our friendly machinist, and have him turn the plate into the following pattern..
http://i27.photobucket.com/albums/c1...3456/Part1.png


Now, take back to the brigeport, tilt the head 45 degrees, and true the vise.
Then after we have that, we can just vise the plate using the octagon.. that will ensure true-ness on one plane (ie the y is now true) and then find the center of the octagon, and then use a 1 in endmill, then a 1/4 in end mill through to get..

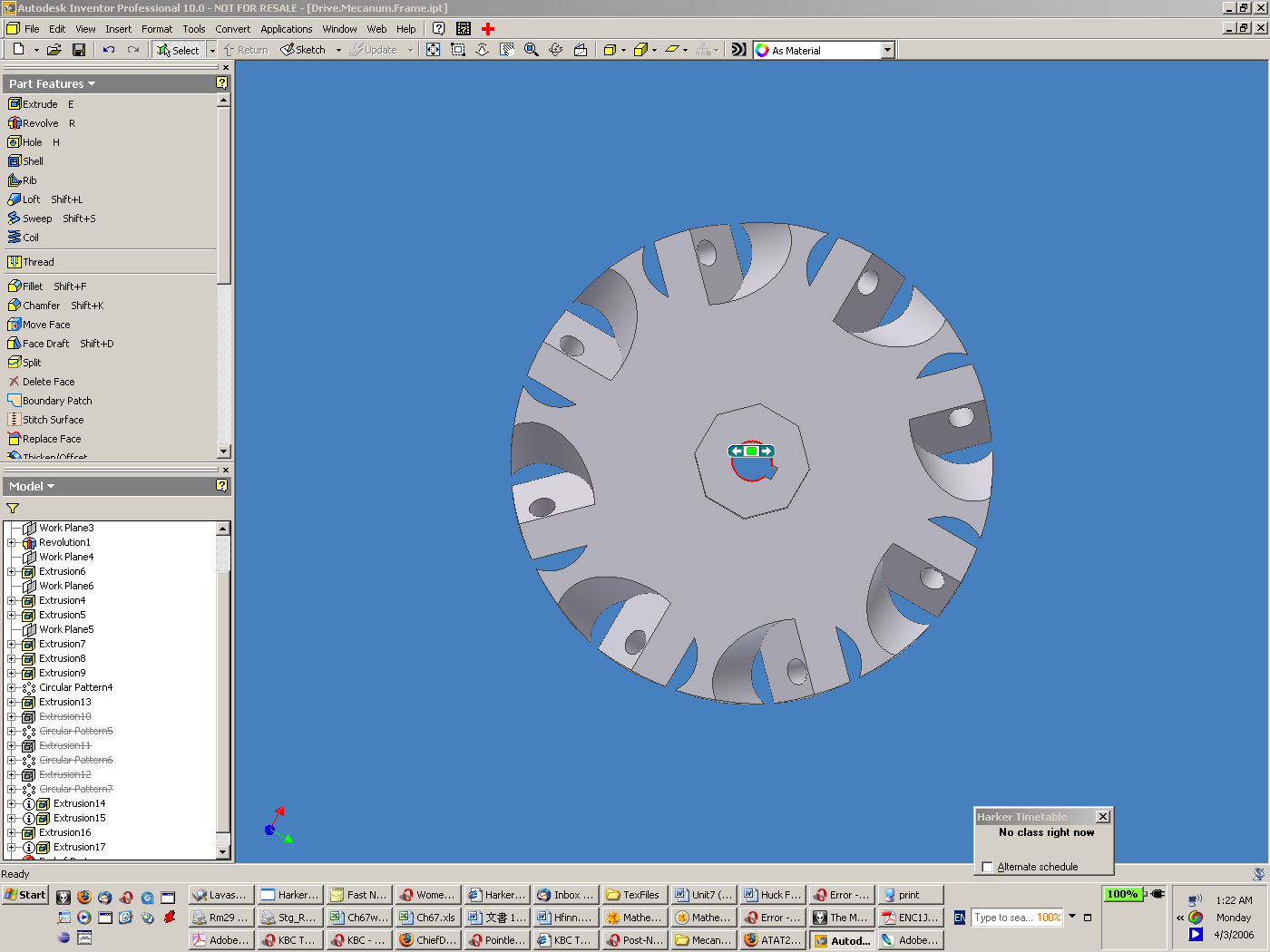

http://i27.photobucket.com/albums/c1...3456/Part2.png

Then, since this form is quite awkward, after tramming the head to 90, we make some ornamental cuts.
http://i27.photobucket.com/albums/c1...3456/part3.png

Now there's the hub, the rollers should be equally easy. originally, we were planning on begging for someone with cnc lathe to cut us this profile..
http://i27.photobucket.com/albums/c1...3456/Part4.png

But, our student mentor realized that a lab stop, bored with a .25 in hole would be nearly identical in terms of circularity (the one and maybe even only key measure of wheel performance)
here's comparison of theoretical optical versus lab stops
http://i27.photobucket.com/albums/c1...3456/Part5.png

Finally, it should look like..
http://i27.photobucket.com/albums/c1...3456/Final.png

So. Any suggestions, comments, concerns?

[sanddrag]

Looks like a plan. It's clear you've thought quite a bit about it. Good luck with making it. I'd like to see the finished product!

[Bill_Hancoc]

So i thought about this for a lil while and thought of something. My expeirence with lab stop it that it was a very soft compound rubber that seemed to peel and cut very easily. I think i wouldnt be durable enough for driving around on carpet and pushing other bots around.

[Andrew Blair]

Looks good, but how I hate to see all that Al burned through! Seems pretty possible with no CNC stuff. Though a rotary indexer is a must.

[Madison]

It's interesting to read others' ideas for producing these sorts of wheels with minimal headaches. I, too, have been giving it some thought lately as a potential off-season project for our team and was trying to design a wheel that could be made using what we have available -- a 3 axis CNC mill, drill press and lathe.

Forgive my lack of step-by-step illustrations

[Bill_Hancoc]

Ok o searched this one and i couldnt find anything difinative. What is the difference between omni wheels and mercanum wheels. i know the power used i different depending on the direction moving but i thought i read somewhere the it is hard to push bots with mercanum wheels but easy with omni wheels.

any help i appreciated thanks

Bill

[EricH]

Originally Posted by Bill_Hancoc

What is the difference between omni wheels and mercanum wheels. i know the power used i different depending on the direction moving but i thought i read somewhere the it is hard to push bots with mercanum wheels but easy with omni wheels.

The difference is the angle of the outer rollers. Omni wheels have their rollers round sides facing at 90 degrees to the wheel's roundness. Mecanums have their rollers at about 45 degrees (though this is variable). If a team has mecanums, you will have a harder time pushing them (due to the angled rollers and the power--four motors available versus two at any given time for omni's). However, it is still possible to push mecanums around, it's just a little harder.

[MikeJ675]

Two quick comments on the first design-

With the support for the rollers in the center, they may not turn as efficiently.(not too big of an issue)

Having the rollers positioned like that will make it easier to bend the supports(leverage and all that) if they get hit. Protect them well.

[Veselin Kolev]

Horay for lab stops and ghetto-ness. Hey, if it works, we'll let you guys know. If it doesnt, we'll make it work, and let you know

[mechanicalbrain]

I almost wonder if the design by NeilR (http://www.chiefdelphi.com/forums/sh...t=mecanum+sell half way down) wouldn't be easier to make.
http://www.chiefdelphi.com/forums/at...achmentid=3745

[Tytus Gerrish]

I cant see your pictures while im here at work but from your description your manufacture method is very similar to the latest i've come up with. the term "easy to make" has to be viewed very realitively. because as far as the basic wheel goes there's no real easy wayt to make it without the right tools.

[Tatsu]

update - Disks are done.. mill is cleaned and ready to go.. now all we have to do is make the jig (for accurate indexing) and start cutting... we should have a prototype soon.

Anyway, this could easily be done with a rotary table and a manual mill (no CNC needed.)

[Tatsu]

Victory!

Went milling today, got the wheels done. Here are some pictures. They still need to be cheeseholed, but meh. we've 7 more to go!
(sorry for low-res, taken on my camerafone)

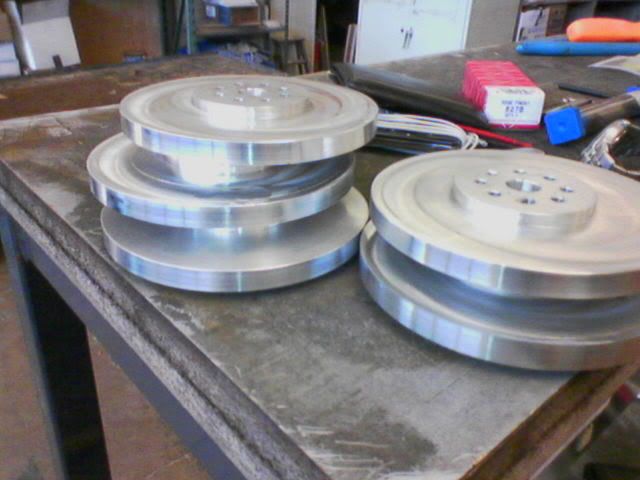

Blanks
http://i27.photobucket.com/albums/c1...456/Blanks.jpg

Initial setup
http://i27.photobucket.com/albums/c1.../MillSetup.jpg

Closeup of the jig
http://i27.photobucket.com/albums/c1...tupCloseup.jpg

First cut
http://i27.photobucket.com/albums/c1...6/FirstCut.jpg

Second cut
http://i27.photobucket.com/albums/c1.../SecondCut.jpg

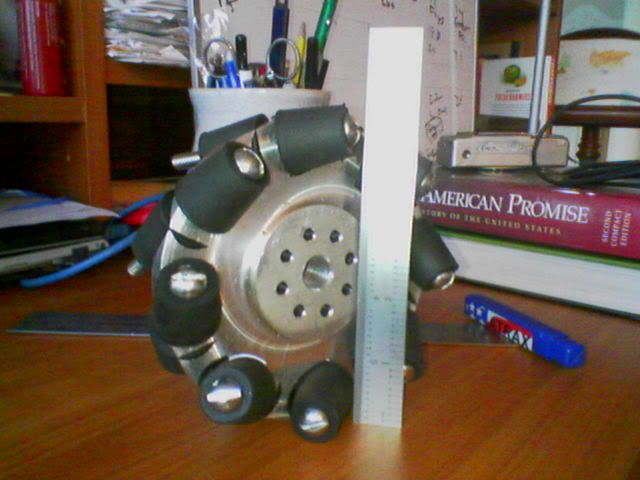

Assembled
http://i27.photobucket.com/albums/c1.../Assembled.jpg


(NB - the steel rule is a 6" scale)

We didnt really NEED a mill, we could have done this with a drill press =p. As long as you can get the blanks, you can make these mecanums with a drill press and bandsaw. but a mill is nice =p.

[Tytus Gerrish]

cool. nice to see them done. what machine are these destined to be a part of?

[Veselin Kolev]

These wheels are for prototyping. We are going to have two such wheels, and two mirrored (and of course spares) on a robot. They will be run direct driven off four KOP transmissions with encoders on a KOP chassis. This is to perfect the wheel design and code behind mecanum drive. If we deem the drive reliable and useful enough, we might just use this next year.
