pic: Team 116 Modular Control System

[Lil' Lavery]

Originally Posted by BlackShadowFox

I know the obvious things, its the amount of each components that i would like to know.

That varied by year. Pictured in this thread is the 2005 version, which included 7 victors, 3 spike relays, 3 mollusk connector (for pwms), and the essentials (RC, Main breaker, breaker panel), as well as a large muffin fan for cooling.
Since the 116 website down, there are no pictures I can find of the final version, so I have some pictures of an earlier version (wires not cleaned up etc.). The 2007 version had 6 victors, 6 spikes, power distribution block, RC, main breaker, breaker panel, LCD panel (not pictured), DB25 connection (for pwms, not pictured), back-up battery, and a large muffin fan.

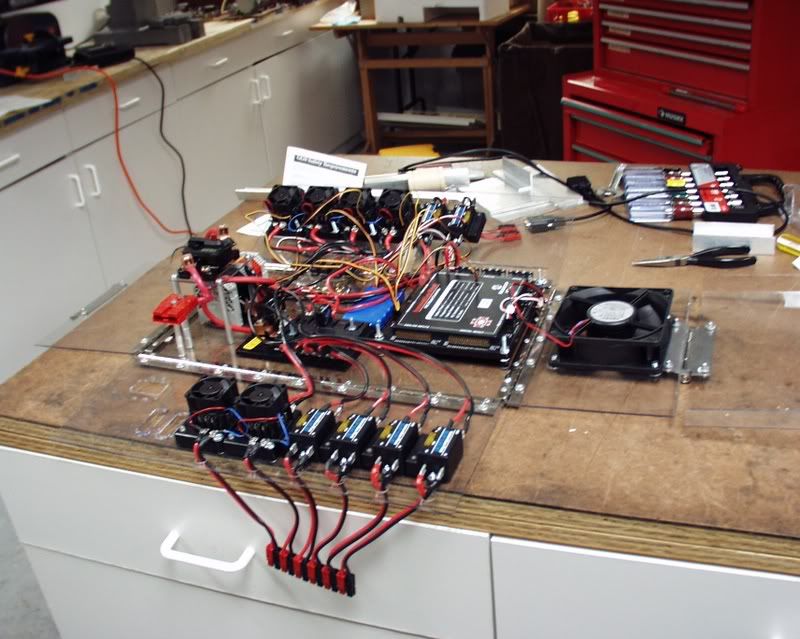

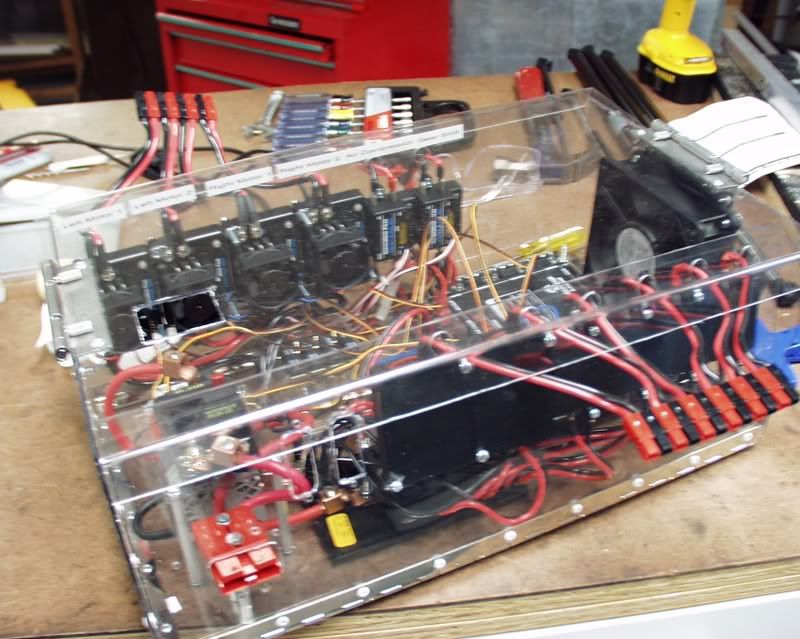

Unfinished 2007 pictures:

http://img.photobucket.com/albums/v1...e/P2140494.jpg
