Re: pic: 8WD Concept - CAD Exercise

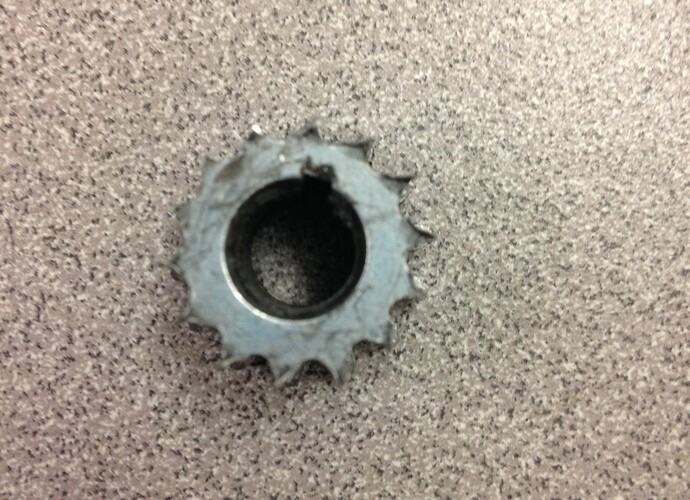

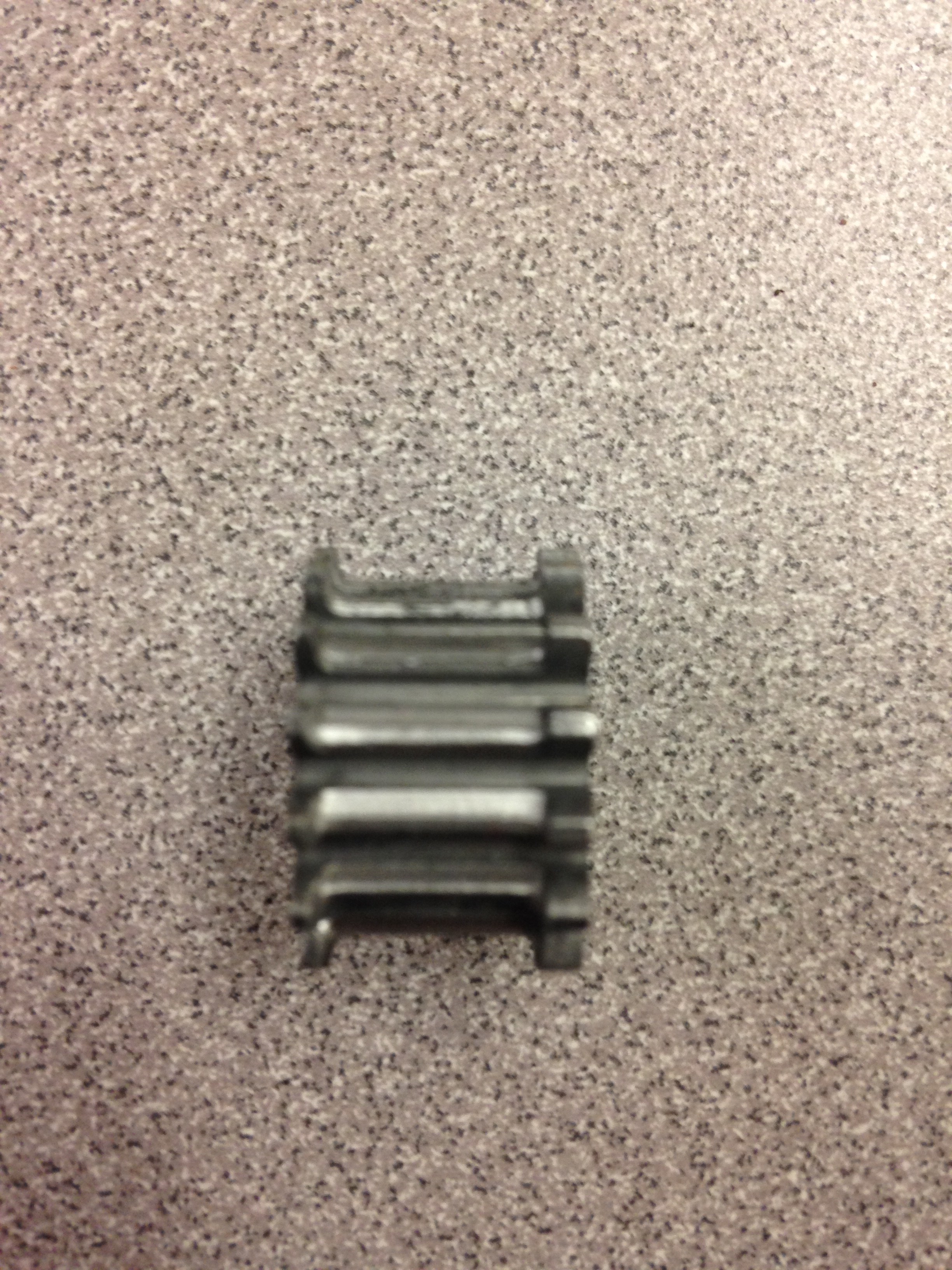

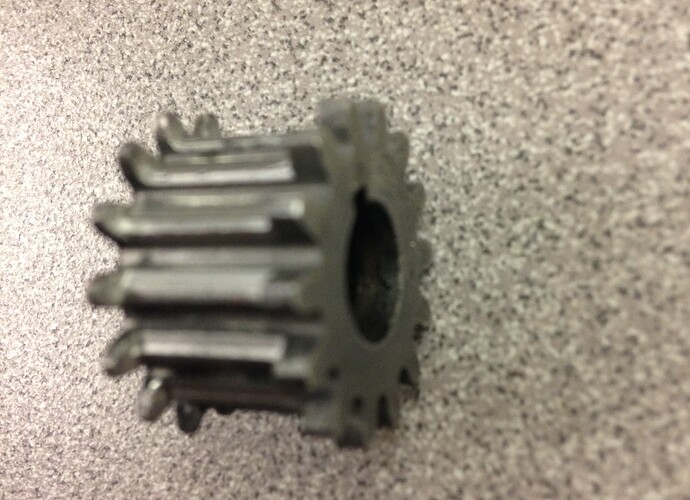

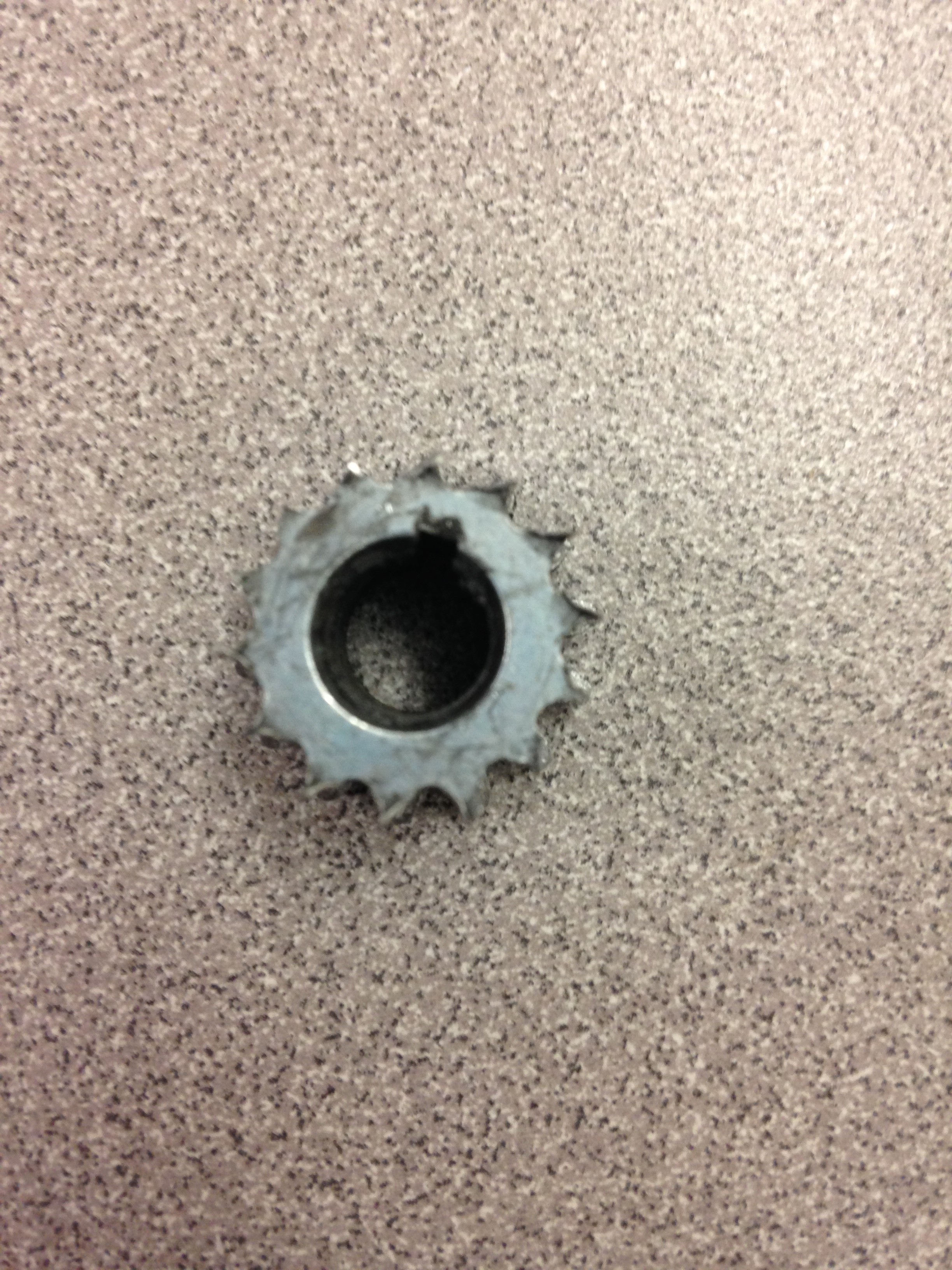

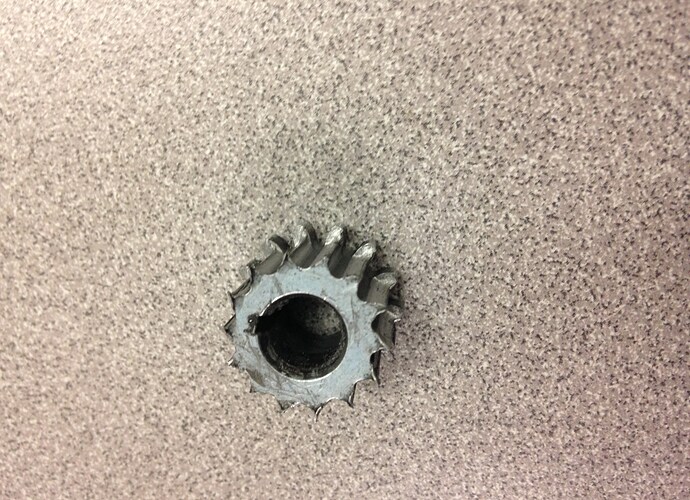

Looks really nice. Clean and well thought out. I would like to point out that the shifter on the first stage (off CIM motors) makes it difficult to clock the gears. We have done this in the past and it can get tricky, not impossible. I would suggest using a hex drive on the larger of the two pinions coming off the CIM and make the gear tooth count not divisible by six for that larger pinion gear. This would allow you to index that gear on the hex shaft to six different positions. 12 positions if the hex is not lined up with the teeth perfectly and you flip it over. You can fine tune the clocking of the gears to each other if you design it in from the beginning. I am curious about how other teams have dealt with this issue in the past that used dual pinions off the CIM.
|
...the list of the things we want to get done in the off-season has grown to such a length that I have to take off my shoes and socks to count them...and I think I may need to grow a few more toes soon. - StephLee [more]
