Custom AS5040 Breakout Board
By: Michael Hill
New: 01-08-2016 12:02 PM
Updated: 01-08-2016 03:23 PM
Total downloads: 175 times
I was annoyed with the grounded mounting holes and the odd mounting dimensions for the eval board on DigiKey, so I made my own.
Use at your own risk as it has not been tested. While it looks like the holes are grounded, there is a ground pullback.
Gerber Files and Schematic are attached.
Order PCB here: https://oshpark.com/shared_projects/vgQrxpF7

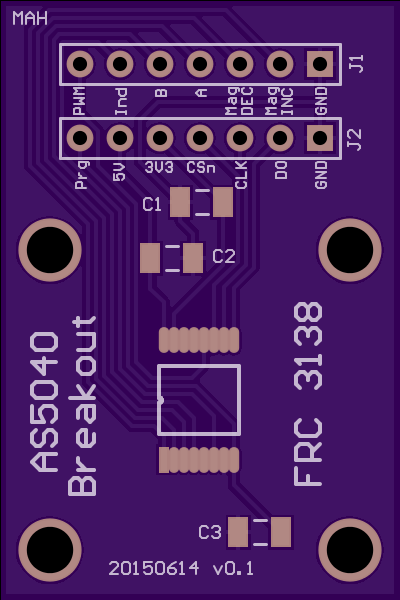

OshPark Render
Layout:
Attached Files
-
Manufacturing Files
magnetic_encoder.zip
download file
uploaded: 01-08-2016 12:02 PM
filetype: zip
filesize: 9.19kb
downloads: 56
-
Schematic
Job1.PDF
download file
uploaded: 01-08-2016 12:02 PM
filetype: PDF
filesize: 90.67kb
downloads: 117
