What is the best way for me to get the CAD for the simple upper hub. Im looking to cut it out on our x-carve! Thank you in advance!!
You can download the Andymark replica CAD model and cut out the 1/2" plates with 1/2" plywood (or modify the design to utilize 3/4" plywood which is what we did). To cut out the polycarbonate pieces, you can flatten the curved model and cut it.

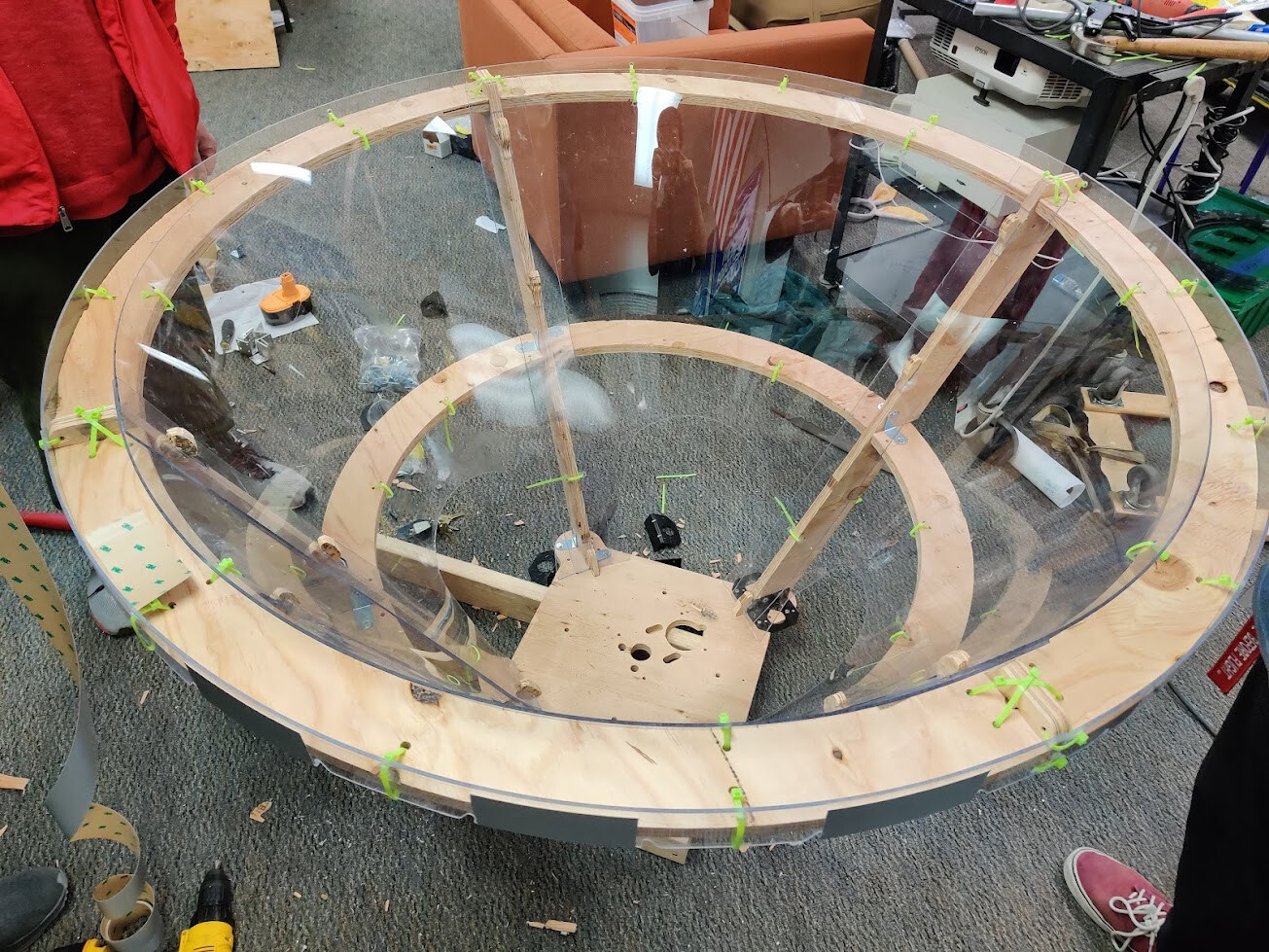

Here’s a photo of our setup:
Do you happen to have the dxf of the flat pattern? We are using inventor and the step files won’t flat pattern
Here’s the STEP file of the flattened polycarb pieces. There’s two for the funnel panels: one for .75" plywood and one for .5" plywood.
https://drive.google.com/drive/folders/1kS5JsR7St_Xhku7w8W7YfTz1Qk_6RXjI?usp=sharing
