Gearbox cover for MaxSwerve

Technical CAD
, ,
1

Since so many teams are using swerve this year, thought I’d share a MaxSwerve cover design I made in the preseason

https://www.printables.com/model/768421-gearbox-cover-for-rev-maxswerve

1 Like
2

Simple, I like it.

3

Updated this design:

  • 2 piece design to allow for access to gears while fully assembled (greasing, inspection, etc.)
  • Exterior heat set mounting holes (M4/8-32)
  • Corrected encoder cutout, turns out my team had assembled the modules wrong

Download at the same link

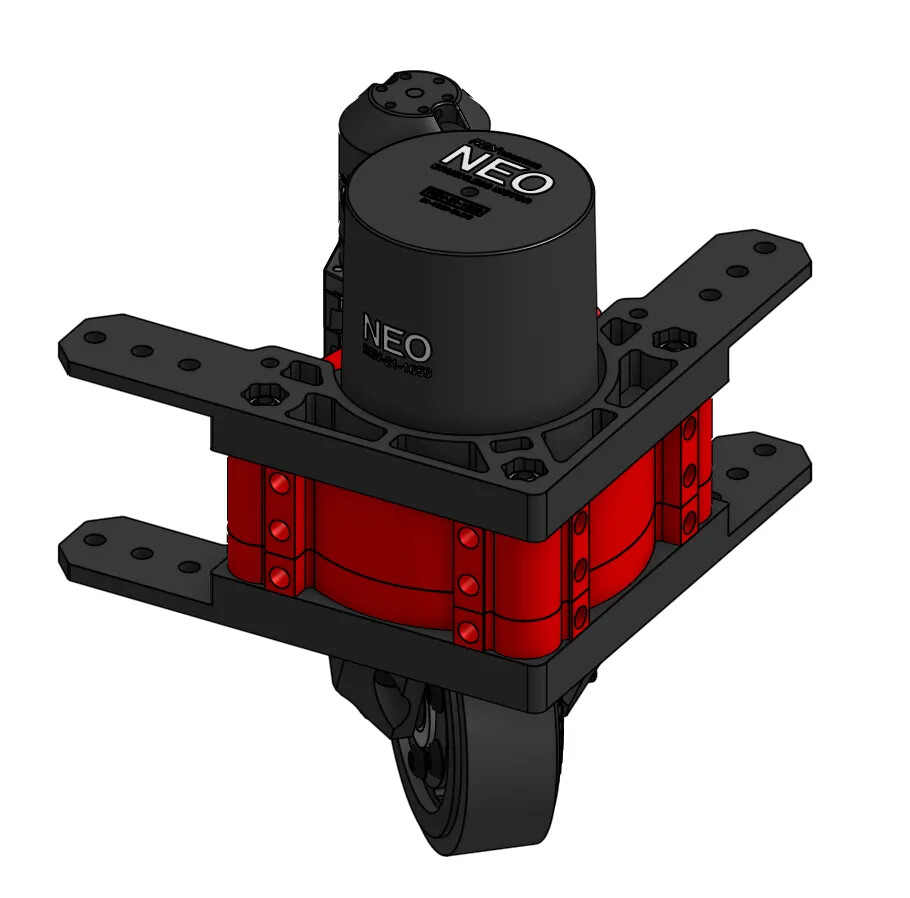

image910×898 73 KB
