Operator Shelf Dimensions


What are the dimensions for the operator shelf (i.e. the place you set your control board for the driver) I know in one post it said the aluminum shelf was 12" deep and 12’ long. Does this mean each team has roughly 4’ length to work with?

Thank you,

Jesse K.
Team 1317

The Operator Interface Console designed by your team must fit on the 69” wide by 12” deep shelf in the Alliance Station and the radio modem connected to the Operator Interface must be able to reach the mounting bracket on the operator stations. Be sure to leave at least 48” of slack in the 9-pin cable.

The shelf is also 34" off the floor.

Be aware that if you plan on pushing the limit the 69" wide includes the emergency stop box.

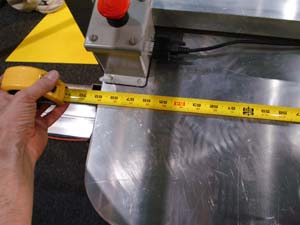

Driver shelf.jpg

Driver shelf.jpg
