Kitbot Bending Analysis
by: kramarczyk

FEA analysis of 2010 kitbot frame with some simple bracing options.

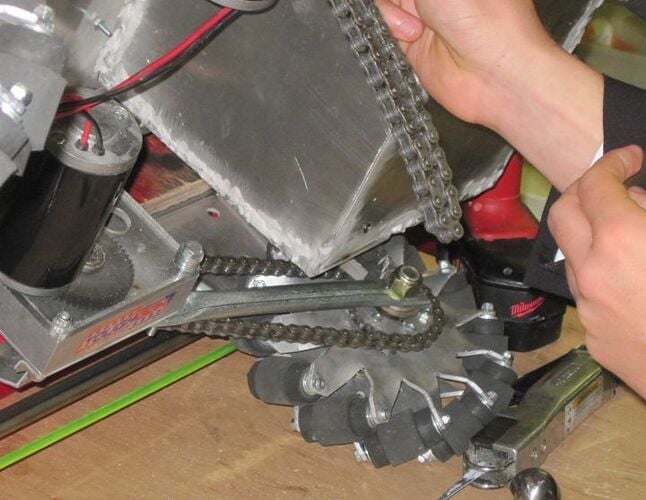

This season we took the kitbot frame at face value based upon several years of good experiences. Unfortunately the abuse of practice and events eventually took their toll on the frame. After running into other teams that was having similar chain issues I decided to pull together the attached ppt covering how we addressed the problem.

Thanks to FRC815 for the additional data.

Analysis of Frame Bending.ppt (5.37 MB)

Thanks for posting this up. There are a lot of interesting tid-bits to gather from this.

A couple of take-aways I got were:
A reminder of the lack of stiffness in an open rail section (see Ford commerical for “Fully Boxed Frame”).
Another great point is the importance of spaceframe and triangulation vs. cantilevered structures.

Overall, I still think the Kit was a pretty reasonable unit that accomplished the goal of a fairly simple mobility solution for many teams. While the classic layout (flat chassis) has always suffered from torsional stiffness issues (this is a benefit for the Mecanum guys), this one seems to be especially strained due to the larger moments from the stand-offs. While some may be upset with this, I think a great number of teams learned some very important lessons this build season. This study is a clear example of that.

You guys did a good job of determining the root cause and analytically solving the problem.

I don’t think your FEA is set up totally correct, but it is close enough to show what you are trying to.

Good job to you and your team.

-Brando

I agree that the FEA rough, but adequate. What would you change about it?

We are continuing to struggle with the same chain issues. We thought we had traumatized the frame by our elevating technique; unfortunately it appears that simply driving the robot creates stress. This will be great strategic knowledge to implement at IRI.
I’m curious - what types of wheels did you use? We have slicks in front and stickies in back; I’m convinced the extra grip in the stickies can exaggerate the frame bending. Do you feel the same way?

I’m not totally clear on how you constrained the system—did you pick the middle hole in the channel, and constrain its surface to ground? I don’t think that’s going to give you good results in the region of that hole…but far away from it, you’re probably alright. (It’s not that it’s a singularity—as indicated in slide 18—so much as it’s just a constraint that isn’t representative of the real structure and loads.)

Also, the load of 300 lb[sub]f[/sub] in an arbitrary direction is a critical assumption. How was that arrived at? I can’t help but think there needs to be some consideration of the other forces transmitted through the wheel and the frame in a collision—even in a static case, isn’t the loading significantly more complicated in real life? Even neglecting other components of the loading, and focusing on this principal one, what was the reasoning behind this particular magnitude?

And because the material isn’t actually homogeneous, you’ve got to be careful with your conclusions about the areas of peak stress which lie in strain-hardened areas (like corners that have been bent on a break). You’re probably going to have stronger material in that area—counteracting some of the stress—but with more crack initiation sites that can fail (maybe in low-cycle fatigue). Since the safety factor calculation assumes homogeneous material, there’s significant uncertainty here as to when failure (either by yielding or fracture) will actually occur.

Now of course, if you just picked this as a worst-case scenario, that seems quite reasonable as a rough estimate. But then it implies that you’re not going to put too much stock in the safety factor calculations, because they’re necessarily imprecise. It gives you a good order of magnitude study, tests relative performance of several options and highlights points of failure, but won’t allow you to say with confidence exactly what the failure loads are.

So basically, it’s a useful exercise, as long as the students are clear on its limitations. The key is to treat this as an estimate, rather than “the solution” (as if it was a deterministic math problem). I think that’s basically what you guys noted in your conclusions—good work!

Interesting analysis of this problem

The kit frame is a decent design for all but this years’ game.

We only used kit wheels during this process, but they were rotated rear to front and back during the process. The problem always followed the sticky wheels. Presumably this is due to the higher coefficient of friction causing more tension to develop in that chain. Good luck at IRI.

If you assume the load case of driving into a wall with KOP grippies in the back. Assume full weight transfer to the rear or 150 lbs by both axles. Assume 0.9 COFriction and you would have a tractive force of about 70 lbs. Now for the important part. With an 8" wheel, and an approximately 3" dia sprocket, the break-free torque would require a chain tension of 8/3*Tractive Force or about 190lbs. Since the chain is reasonable flat, let’s just add those and you get 260 lbs. Now a proper calc would have you draw in vectors and add in “dynamic factors” or “Safety Factors” or other “fudge factors”, but these are all additional educated guesses. If you calculate the loads are hitting 250-ish, then a 300 lbs load is reasonable in order to study behaviours of the system.
Now if I was building a sattelite or a racecar, I would want better detail, but this is an excellent swag for this sort of analysis.

Great bunch of questions.

First of all, I was using Autodesk Inventor for the analysis, so there were some limitations imposed by that choice. I originally wanted to cut the frame in half and use a symmetric constraint at the cut face. The purpose of that would be to allow the risers to float. Unfortunately I didn’t have a symmetric constraint available. After some thought I decided to discard the idea of cutting the frame since FEA was a very new concept to the team I didn’t want to confuse it with an additional layer of abstraction. I just dealt with the additional solve times that this choice required. At this point I needed some piece of geometry to lock down so I grabbed the center hole with the understanding that it might generate some false peak values in that region. You are right that it is not truly a singularity as it is more that a single point. I need to correct my habit of referring to false peaks with that term.

Also, the load of 300 lb[sub]f[/sub] in an arbitrary direction is a critical assumption. How was that arrived at? I can’t help but think there needs to be some consideration of the other forces transmitted through the wheel and the frame in a collision—even in a static case, isn’t the loading significantly more complicated in real life? Even neglecting other components of the loading, and focusing on this principal one, what was the reasoning behind this particular magnitude?

The load choice were derived from our ability to replicate the problem. At events we were unable to duplicate the problem in the pit to verify that we had fixed it. This led to ‘hope’ as part of the troubleshooting process which is less than effective. This also led to us thinking that is was a complicated interaction of forces to result in the chain coming off. In the post season, we played with it and thought we could force the problem to occur during a brick wall push test. We could have come up with a way to run this test at the event, but we just didn’t think of it. Consequentially, the load was based off this simple test and the direction was intended to be nominally along the chain path. The magnitude of the force was derived from the kitbot components.

A single CIM outputs 2.42 N-m of torque at stall which converts to 21.4 lbf-in.
The kit toughbox has two 14:50 stages in it for at torque amplification of 21.450/1450/14 = 273 lbf-in
The output sprocket is a 15 tooth #35 sprocket.
15 teeth * .375" pitch = 5.625" circumference.
5.625" / 3.14 = 1.8" diameter.
1.8"/2 = .9" radius.
273 lbf-in / .9" = 303 lbf of chain tension.

I rounded to 300 lbf because it simple. With 2 CIMs per side there would be capacity for 600 lbf of chain tension. With all of that being said, these load can only be achieved if they are countered by the traction of the wheel. During normal operation of the robot (driving on a flat surface) the normal force for each wheel would be around 37.5 lbf (assuming a central CG location). With the kit 8" traction wheels (published mu of 1.0) they are capable of resisting a 150 lbf-in torque at the wheel.
The kit provided 22 tooth #35 sprockets for the wheels.
15 teeth * .375" pitch = 8.25" circumference
8.25" / 3.14 = 2.63" diameter
2.63" / 2 = 1.31" radius
150 lbf-in / 1.31" = 114 lbf of chain tension resistance.

This is clearly less than the 300 lbf number used in the analysis. In order to reach those higher chain tensions a transient condition is required that increases the normal load on the wheel. A trainsient like this can easily be achieved during contact with the bumps on the field, ramps in front of the goals or during contact with other field elements or robots. This is where the analysis gets a little funny. As you mention, this is a complicated interaction and I would feel foolish trying to defend a specific load case. I took a simpler route and viewed it as a safety factor. I felt that the transient had the capacity of increasing the normal force by 2.5-3x momentarily, so that made the 300 lbf load achieveable. There is debate as to if this was a reasonable assumption; I would love to hear alternate approaches.

And because the material isn’t actually homogeneous, you’ve got to be careful with your conclusions about the areas of peak stress which lie in strain-hardened areas (like corners that have been bent on a break). You’re probably going to have stronger material in that area—counteracting some of the stress—but with more crack initiation sites that can fail (maybe in low-cycle fatigue). Since the safety factor calculation assumes homogeneous material, there’s significant uncertainty here as to when failure (either by yielding or fracture) will actually occur.

Inventor (to my knowledge) is only capable of linear static FEA with homogeneous materials, so there wasn’t a way to bake that into the analysis. I understand what you are saying about processing modifying the grain structure and consequentally the material properties. Based upon the time and tools I have available I choose to take any strain hardening as a bonus and make my assumption based upon the lower yield strength. Another important thing you touch on is the definition of failure. Failure come in many forms depending on the application. Material fracture or yielding are obvious ones, but I think in this case excessive elastic deformation causes the failure. Unfortunately, because it is elastic, we don’t see any thing obviously wrong after we remove the load.

Now of course, if you just picked this as a worst-case scenario, that seems quite reasonable as a rough estimate. But then it implies that you’re not going to put too much stock in the safety factor calculations, because they’re necessarily imprecise. It gives you a good order of magnitude study, tests relative performance of several options and highlights points of failure, but won’t allow you to say with confidence exactly what the failure loads are.

As soon as I started taking the dynamic environment outside of my robot into account during the analysis it became more of a qualitative exercise that quantitative. I tried to keep the quantities resonable, but a grain of salt is required. I think it certainly provides us with a better understanding of how the loads are carried in the frame and where, specifically, to watch for problems.

So basically, it’s a useful exercise, as long as the students are clear on its limitations. The key is to treat this as an estimate, rather than “the solution” (as if it was a deterministic math problem). I think that’s basically what you guys noted in your conclusions—good work!

Thanks for the constructive comments!
