pic: 1902 Electronics Board

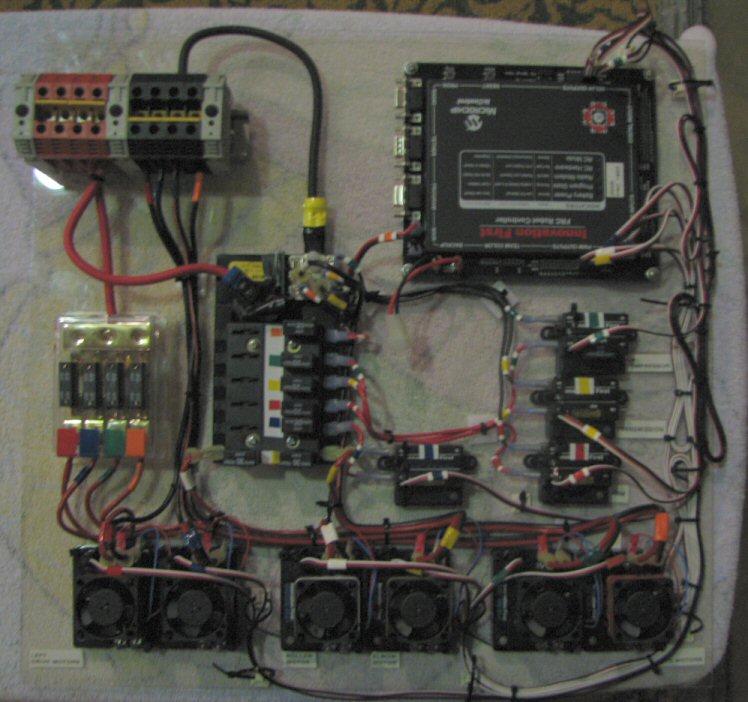

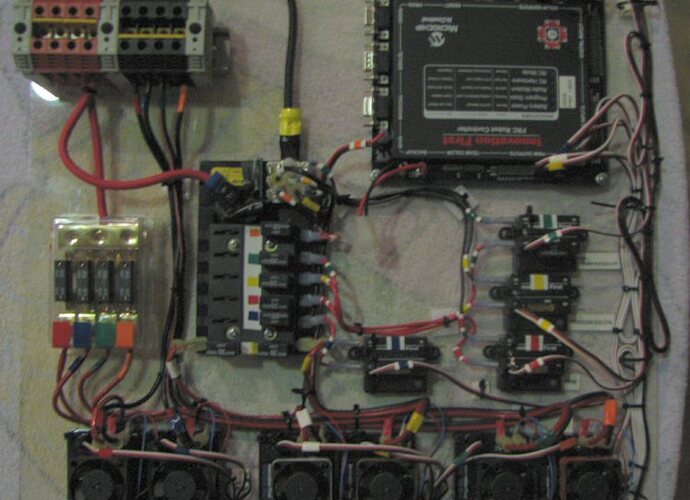

FRC Team 1902 4-H Exploding Bacon Robotic’s 2008 electronics board

Nice labeling! Can’t wait to see what you guys come up with this year :slight_smile:

I like the layout, all the wires are nicely placed. I like it, plus labels always help our team

Great job, my favorite part is the colorcoded wires and circuitbreakers and such!
