pic: 701's Pnuematic System

[Doug_G]

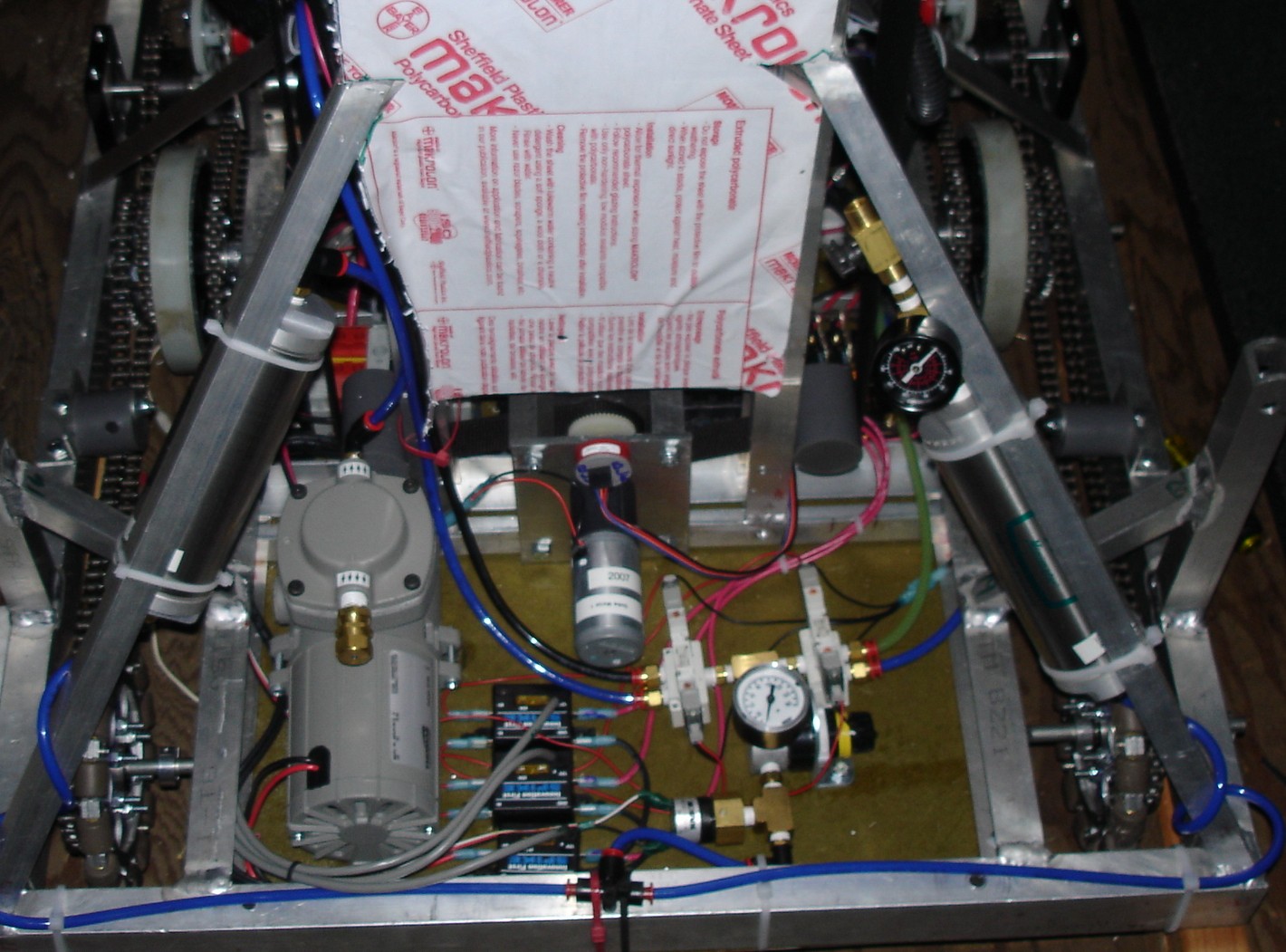

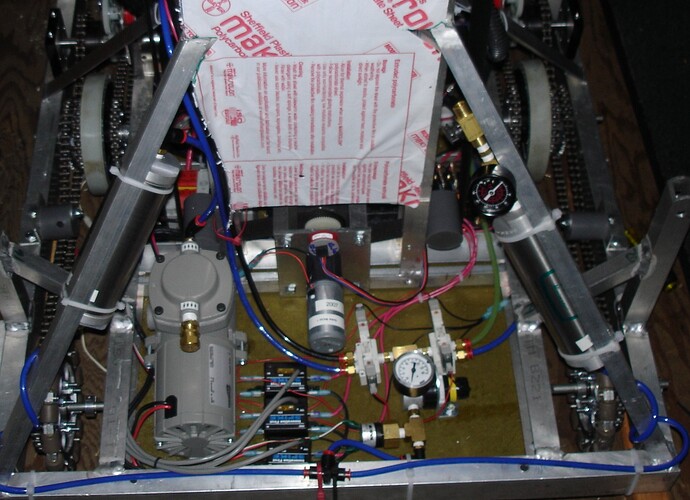

Here’s a pic of the pnuematic side of our 2007 bot. Fairly basic setup, compressor, 2 double solenoids, 2 air tanks, etc… These power 2 3/4" bore cylinders to actuate our tube grabber mechanism.
