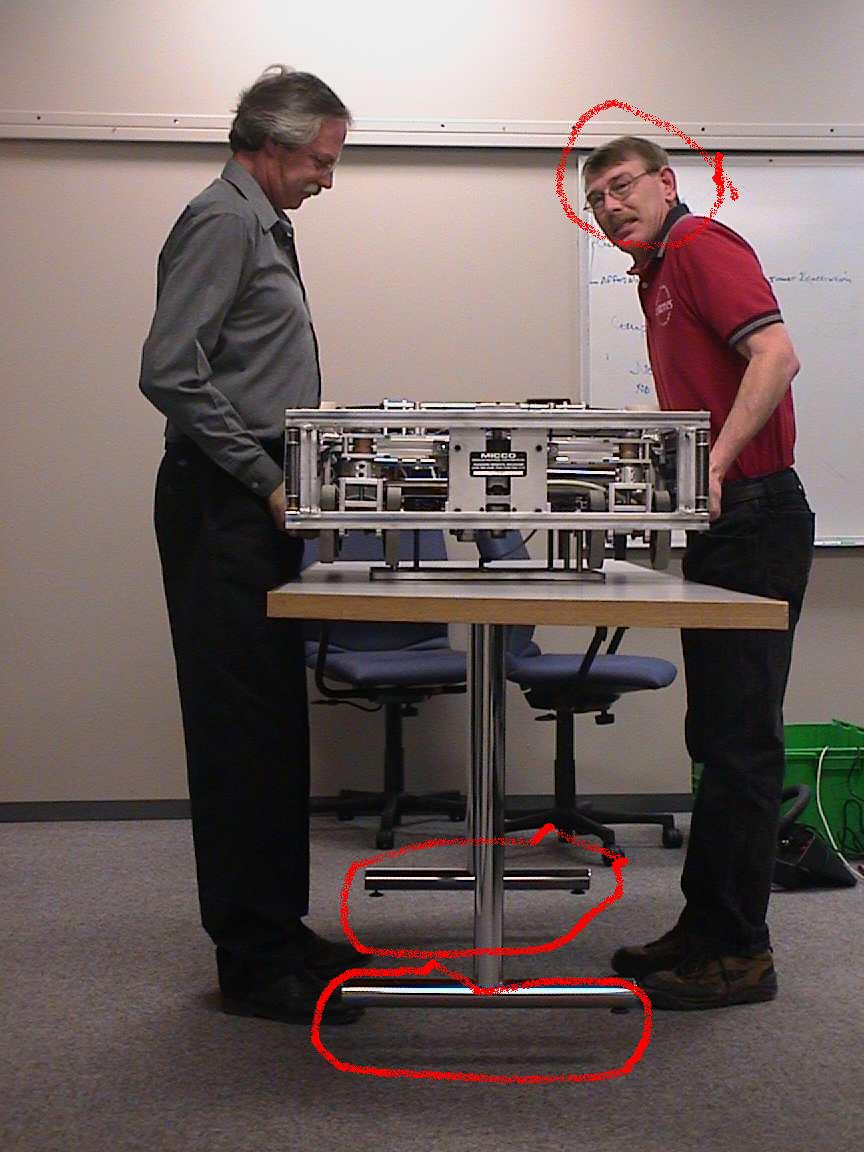

Notice the legs off the ground (circled in red at the bottom), and Gary’s face (circled on top)? That was how strong our robot was, and the table weigh’s about 500 lbs.
What does everyone think of the things circled in red?
1st of all - It’s not 850 psi. We had about a combined weight (with our suction on - drawing about 6psi) of 850 lbs. 2nd of all, yea that guy in the red is old - but he still can kick a lot of people’s butt (not mine - haha! :D) 3rd you didn’t need the red circles - i’m sure that people can see for them selves…
That’s it for now!
Thats pretty impressive.
Your team really does suck!
wow, matt… congrats! i don’t think any robot in FIRST sucks as much as you guys!
/me hands matt and the rest of team 5 the “Your Robot Sucks the Most” award
=-]
I’d like to say that the table does not weigh that much.
*Originally posted by Joe Clohessy *
**I’d like to say that the table does not weigh that much. **
It weighs about 500 lbs. That is alot.
…And those 2 old men are picking up 630 pounds…
2 and 1/2 feet by 3 feet by 1 and 1/2 inch waferboard
= 20 pounds
Aluminum tubing
= 25 pounds
Total Table Weight = 45 pounds
Those 2 old men are holding up 175 pounds assuming your robot weighs 130 pounds and my estimates are right…
*Originally posted by team222badbrad *
**…And those 2 old men are picking up 630 pounds…2 and 1/2 feet by 3 feet by 1 and 1/2 inch waferboard
= 20 pounds
Aluminum tubing
= 25 poundsTotal Table Weight = 45 pounds
Those 2 old men are holding up 175 pounds assuming your robot weighs 130 pounds and my estimates are right… **
Bob and Gary [the guys in the picture], said the table weighs about 500 lbs.
Instead of this turning into a flame though, PM me or IM me on AIM about this if you still wanna fight.
Bsr Tunk Pa: Bring it on!
evanescence s0ul: who is this, the one w/ the math?
Bsr Tunk Pa: YUP
evanescence s0ul: ah, k.
evanescence s0ul: the engineers said that it weighted 500 lbs.
Bsr Tunk Pa: well since I last picked up a table about that size it seemed to me it weighed about 40 pounds
evanescence s0ul: u’d have to take it up w/ the engineers, i’m just believing what they said
Bsr Tunk Pa: well give me their screen names…
evanescence s0ul: they ain’t got 'em
Bsr Tunk Pa: Email?
evanescence s0ul: they haven’t answered mine in about a few weeks, they are way busy right now
Bsr Tunk Pa: Great excuse
evanescence s0ul: i’m not lieing
LOL
I am not trying to make you mad I am just trying to prove you wrong…
*Originally posted by team222badbrad *
**Bsr Tunk Pa: Bring it on!
evanescence s0ul: who is this, the one w/ the math?
Bsr Tunk Pa: YUP
evanescence s0ul: ah, k.
evanescence s0ul: the engineers said that it weighted 500 lbs.
Bsr Tunk Pa: well since I last picked up a table about that size it seemed to me it weighed about 40 pounds
evanescence s0ul: u’d have to take it up w/ the engineers, i’m just believing what they said
Bsr Tunk Pa: well give me their screen names…
evanescence s0ul: they ain’t got 'em
Bsr Tunk Pa: Email?
evanescence s0ul: they haven’t answered mine in about a few weeks, they are way busy right now
Bsr Tunk Pa: Great excuse
evanescence s0ul: i’m not lieingLOL
I am not trying to make you mad I am just trying to prove you wrong… **
Like I said, I’m just believing what they said…
-
I find it hard to believe that table weighs 500lbs. If those two engineers are squatting 300lbs each, then they better enter the World’s Strongest Man competition.
-
The picture is entertaining, but robots don’t push upward, they push sideways. It would be a lot more plausible if they flipped the robot 90 degrees so the robot was holding the table up in the air vertically. If it doesn’t slide off, then I’d be impressed.
Suction only increases the normal force between the material and the surface. You still need a material with a high coefficient of friction to resist sliding. Without this, a robot could easily push you off the ramp no matter how much suction you have.
*Originally posted by Jnadke *
**1. I find it hard to believe that table weights 500lbs. If those two engineers are squatting 300lbs each, then they better enter the World’s Strongest Man competition.
- The picture is entertaining, but robots don’t push upward, they push sideways. It would be a lot more plausible if they flipped the robot 90 degrees so the robot was holding the table up in the air vertically. **
-
Can we just drop the table thing please.
-
The plate pushes the robot up, and Bob and Gary are holding it up.
*Originally posted by Raven_Writer *
**1. Can we just drop the table thing please.
- The plate pushes the robot up, and Bob and Gary are holding it up. **
dont worry eric i believe the table weighs what the engineers say it weighs (umm…yeah thats right)…theyre all jealous
*Originally posted by purplehaze357 *
**dont worry eric i believe the table weighs what the engineers say it weighs (umm…yeah thats right)…theyre all jealous
Thanks, but still, please.
For people lacking knowledge in physics, here’s what this picture is saying:
Let’s assume STP conditions, so the air pressure outside is 14.7PSI. Now, I’m also assuming that plate is 1 square foot. This is 144 square inches. Lastly, I’m assuming the table weigh 50lbs.
144 ( 14.7PSI - X ) = 50 lbs
X = 14.3PSI
All this picture says is that they are providing enough suction to reduce the pressure between the plate and the table to less than 14.3PSI. Nothing more, nothing less.
I’m not trying to bash your team or anything, all I’m saying is you’re running the wrong test. Robots aren’t going to lift upward, they’ll push sideways. It doesn’t matter if your robot can suck all the air out until it is a near-perfect vacuum, if your plate is just aluminum making contact with the polyethylene, with a coefficient of 0.1, any robot with 120lbs of torque can push you off the ramp. Now, if you had, say, rubber with a coefficient of friction of 2, and you created a vacuum, it would take a metric ton of lateral force to push you off. Big difference.
Unfortunately this isn’t possible because the rubber would fracture long before a metic ton of lateral force was imposed on your robot.
I’m very impressed by the mechanism itself though. It looks very well engineered. What size cylinder are you using to suck the air out? Also, did you use a motor to actuate the cylinder or did you use another cylinder to do it? It seems to me that using another cylinder (in combination with the compressor) would allow you to suck out a far greater volume of air. Although it would weigh more, it would probabaly be less complex because you’d only have to draw the cylinder once to remove a sufficient volume of air.
Did you hook up a pressure guage to determine how much air it is sucking out?
guys…its a joke ok…this is the off-season and there is no need to get into the legistics of a suction cup…nor is there ever a need to stifle a team’s accomplishments…this picture was obviosly created out of sheer fun and youre all turning this into a physics lesson…which i dont think it was ever inteded to be…chill out have fun
*Originally posted by Jnadke *
**For people lacking knowledge in physics, here’s what this picture is saying:Let’s assume STP conditions, so the air pressure outside is 14.7PSI. Now, I’m also assuming that plate is 1 square foot. This is 144 square inches. Lastly, I’m assuming the table weigh 50lbs.
144 ( 14.7PSI - X ) = 50 lbs
X = 14.3PSIAll this picture says is that they are providing enough suction to reduce the pressure between the plate and the table to less than 14.3PSI. Nothing more, nothing less.
I’m not trying to bash your team or anything, all I’m saying is you’re running the wrong test. Robots aren’t going to lift upward, they’ll push sideways. It doesn’t matter if your robot can suck all the air out until it is a near-perfect vacuum, if your plate is just aluminum making contact with the polyethylene, with a coefficient of 0.1, any robot with 120lbs of torque can push you off the ramp.
I’m very impressed by the mechanism itself though. It looks very well engineered. What size cylinder are you using to suck the air out? **
ARRRRRRGGGGHH!!!
This wasn’t really a test, this was just showing stuff. The robot isn’t ment to push upwards, the robot goes up so that the plate can come down to the ground.
The pneumatics I’m unsure of right now *. Matt should know though.
[EDIT]
guys…its a joke ok…this is the off-season and there is no need to get into the legistics of a suction cup…nor is there ever a need to stifle a team’s accomplishments…this picture was obviosly created out of sheer fun and youre all turning this into a physics lesson…which i dont think it was ever inteded to be…chill out have fun
Thank you, and he’s correct.
I’m not a genius in physics, so I might be wrong.*
Wow - did this thread get out of hand.
1st off - That table didn’t weigh any where near 500 lbs. No way - no how. (comon Eric - even if the engineers did say that, use some common sense. Even if that whole table was made out of lead, I don’t know if it would weigh 500 lbs.)
- Please, everyone, don’t argue. Eric just thought wrong. People make mistakes. Back off him. The engineers may of said 500 lbs, but they meant something else. (Comon - we ALL have had those moments…)
3rd - The co-frict (like my nick name?) was pretty high when the “plastic” was not dirty. At Pittsburgh, a robot ramming us at full force (~130 lbs at about 10 fps) could not move us. At Nats - there was sssssoooo much dirt that the co-frict went down. The foam we used was very-very soft to compensate for some of that - but it just over-loaded the foam.
Jnadke -
To throw a little monkey in your theory - what is the trajectory of a robot coming UP a ramp? (it’s not straight up, when you are at the edge of the plastic - you gotta take that into account)
Now enough with the arguments - just everything be. Eric just wanted to show what we created b/c he is proud of it.
Remember - FIRST is not about bashing people even when they are stubborn…
Never argue with an idiot - he may be doing the same.
Now back to the fun - Thank you for all of your praises on our vacuum plate. We had fun trying to think of ways to attach our selves at the top of the ramp - and we thought this would be great. (We did account for some dirt at the top of the ramp - but dang, how much dirt was up there? Maybe we should of hired some Tonka Trucks to clean it up? :D)
As for the pnumatic stuff - we used the largest cylinder to draw about 6 psi of vacuum over 144 in sq. (1 square foot!)
*Originally posted by Matt Attallah *
**Wow - did this thread get out of hand.1st off - That table didn’t weigh any where near 500 lbs. No way - no how. (comon Eric - even if the engineers did say that, use some common sense. Even if that whole table was made out of lead, I don’t know if it would weigh 500 lbs.)
- Please, everyone, don’t argue. Eric just thought wrong. People make mistakes. Back off him. The engineers may of said 500 lbs, but they meant something else. (Comon - we ALL have had those moments…)
3rd - The co-frict (like my nick name?) was pretty high when the “plastic” was not dirty. At Pittsburgh, a robot ramming us at full force (~130 lbs at about 10 fps) could not move us. At Nats - there was sssssoooo much dirt that the co-frict went down. The foam we used was very-very soft to compensate for some of that - but it just over-loaded the foam.
Jnadke -
To throw a little monkey in your theory - what is the trajectory of a robot coming UP a ramp? (it’s not straight up, when you are at the edge of the plastic - you gotta take that into account)
Now enough with the arguments - just everything be. Eric just wanted to show what we created b/c he is proud of it.
Remember - FIRST is not about bashing people even when they are stubborn…
Never argue with an idiot - he may be doing the same.
Now back to the fun - Thank you for all of your praises on our vacuum plate. We had fun trying to think of ways to attach our selves at the top of the ramp - and we thought this would be great. (We did account for some dirt at the top of the ramp - but dang, how much dirt was up there? Maybe we should of hired some Tonka Trucks to clean it up? :D)
As for the pnumatic stuff - we used the largest cylinder to draw about 6 psi of vacuum over 144 in sq. (1 square foot!) **
Thank you Matt.
Yes, I am proud of it.
I might be wrong, maybe they said around 150 and I just heard wrong. I also stated that I was sick, and it messes up my memory.
Maybe we should of hired soem Tonka Trucks to clean it up?
That’d be so freakin’ sweet! lol
