pic: Electrical board bottom

CD-Media: Photos
,
1

734b46f0ef2bfe2f873a2855adfecf5a80b008f9.jpeg478×640 70.6 KB

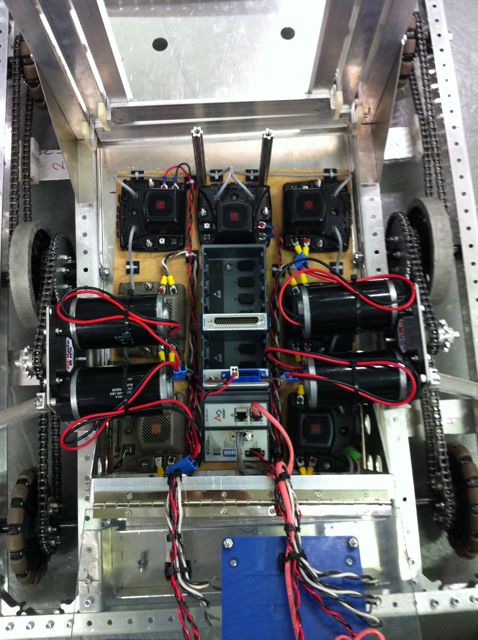

The “bottom” electrical board. Our board this year was constructed as two attached levels, with the top one mounted on a hinge. Pulling it back, you can see the neat power wiring, traveling down to the board in two columns and routing to each individual component from there. The use of CAN bus this year really helps make the wire routing neat!

7 Jaguars… I wonder what all we’re using them for :slight_smile:

2

What are those blue connectors you’re using? Are they the APP SB series?
I’ve never seen them smaller than the 50A housing.
Where did you get them?

3
