rohit · February 16, 2008, 10:52pm

system · February 16, 2008, 10:53pm

Woah. Nice render! Seriously sweet CAD. Is your team competing in the Autodesk Inventor competition?

Sunshine · February 16, 2008, 11:24pm

AWESOME !!

Jeff_801 · February 16, 2008, 11:28pm

How did you do that

Akash_Rastogi · February 16, 2008, 11:52pm

Wow:yikes: , the thumbnail version of that drawing looked like a real picture. THAT is real quality. I hope to be that good some day:rolleyes:

James1902 · February 17, 2008, 12:24am

:yikes: :yikes: :yikes: :yikes: :yikes:
holy crap!!! i am dumbfounded

Morgan_Gillespie · February 17, 2008, 12:25am

Very very impressive render. However, it may be time to neaten up the wiring a bit

jimmythetulip22 · February 17, 2008, 12:26am

This is one good reason why our team is dropping out of the inventor comp.

Very nice!

Josh_Goodman · February 17, 2008, 12:29am

OMG! I’ve been trying to figure out how to do this for a long time! Can you give a tutorial link or give a quick description please?

dlavery · February 17, 2008, 12:51am

Already been done. Check this thread, and the very detailed tutorial Brett has written.

-dave

.

rachal · February 17, 2008, 2:20am

Had I known Inventor 12 was this pro, I would have upgraded my graphics card and upgraded immediately

Well, build is almost over.

rohit · February 17, 2008, 12:06pm

Thanks!

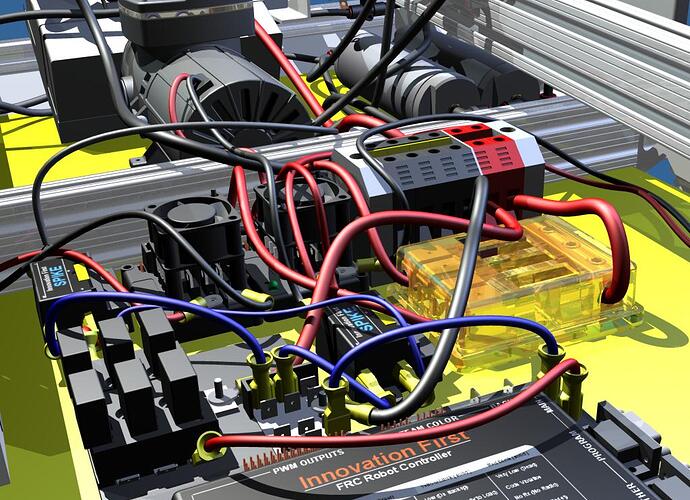

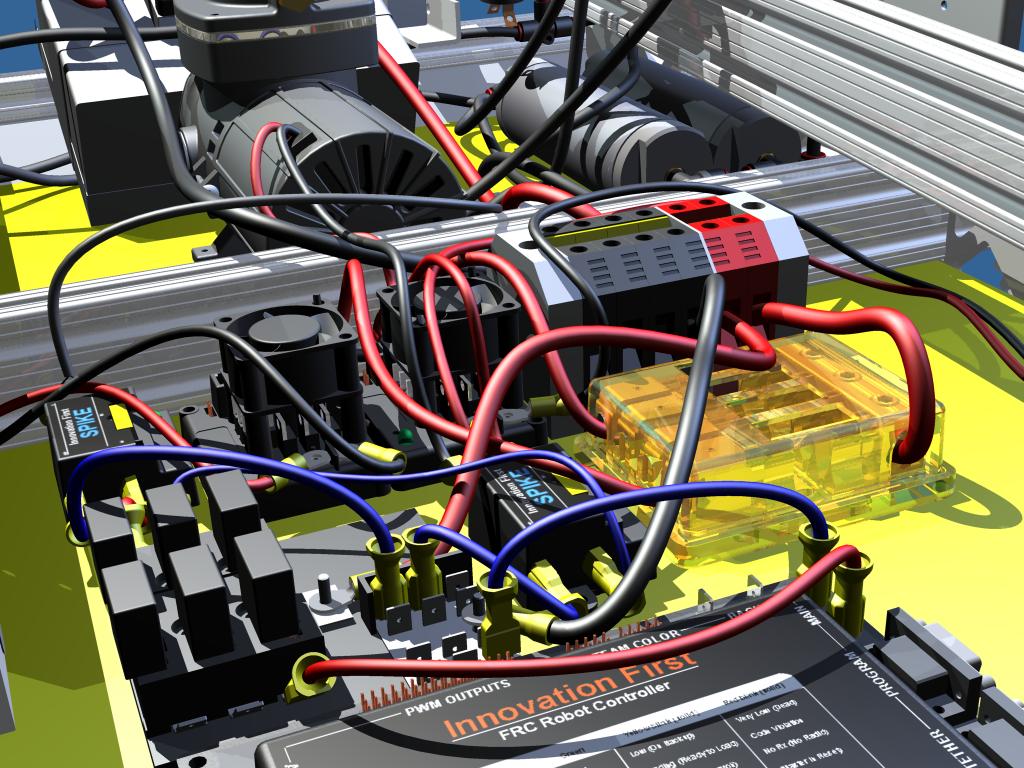

I basically just used the segment tool to do all the wires. It took only about 5 hours to make all tubing and wires.
Yeah. I really need to make the wires look neater, especially with all the wires on top of the fans. Maybe make a few zipties and put the wires together

Josh_Goodman · February 17, 2008, 12:58pm

Thanks! This has been bugging me to learn how to do for a while!
