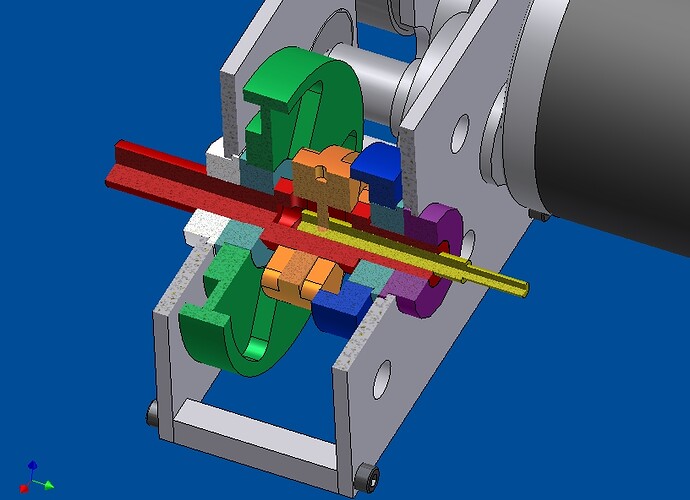

This is basically what the a cutout view of our transmission from this year would look like. I made this back in November (2002) with Andy Baker before the season started. The “dog” is the orange part and it’s linked to the shaft (yellow) that moves back and forth inside the other shaft (red). It enganges the gears on both sides (blue/green). This is very similar to our first year design except that the dog engages the actual gear instead of another dog that we added to the gear.

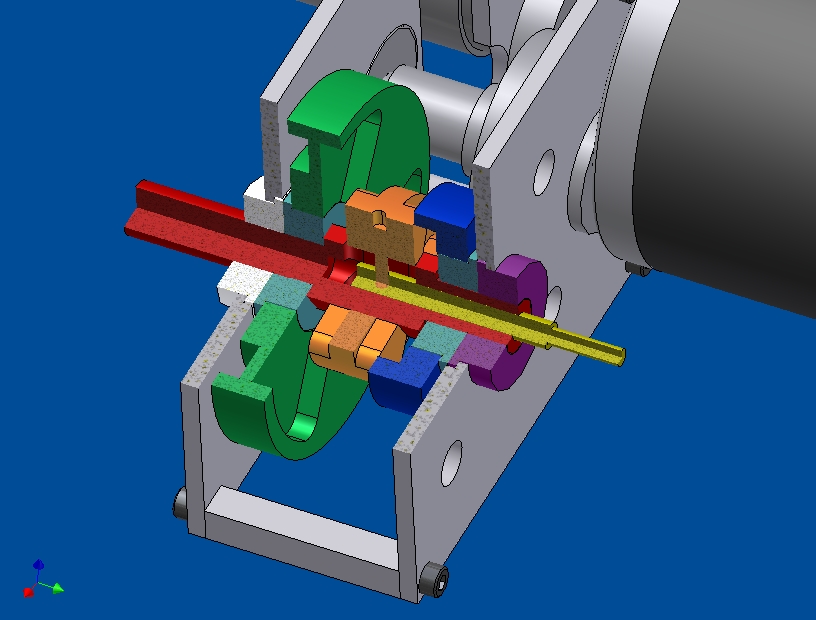

I was admiring the above picture of the TechnoKat Transmission 2003.
Can someone explain the light blue inserts in the green and dark-blue gears?
Also I gather that the purple and white pieces are bearings. Is there a reason for them being different colors?
Lastly, I gather that the orange piece connects either the green or dark-blue gear to the red shaft. Is that correct and if so, how does it connect to the red shaft?
The engaging system looks like their 2002 transmission. The engager is on a hex shaft and the gears on bearings or just freely rotating until the engager locks into the side of either gear.
Doug,
Thanks for the interest. Bill has it right, but I will be more specific.
This design idea came from Steve Butler, an engineer on our team who was into racing. I made the detailed design, using his idea, and put it on our 2002 robot. This is a more refined version, put on our 2003 robot. Clark and Kyle Gilbert made this model in Inventor and created this nice “cut away” view.
The aqua colored parts that fit inside the gears (green and blue gears) are 3/8" id flange bearings. The gears freely spin on the red shaft and transfer the torque to the red shaft via the orange “dog” gear.
The purple and white bearings are the same as the aqua bearings (3/8" id flange ball bearings). They were just shown in different colors for clarity purposes, I believe (the Gilberts’ idea).
I must say that these gearboxes really performed well for us this year. We had some drivetrain problems, but none were due to this gearbox (other gears and belts outside of this gearbox were more problematic).
My plan is to do an extensive white paper on this improved design and release it by mid-June. Next year, we’ll probably use this design again, with more improvements.
Andy B.
Thanks Bill and Andy for clearing up my confusions. I will also take a look at the white paper from last year.
I know that a number of teams used a version of the 2002 TechnoKat Transmission this year:
226, 368, 968… Anybody else?
Anybody have tips for people new to gear box design/building on making one of these? Any problems you ran into and their solutions?
I love the tranny, it worked perfectly for us this year, it had ample power for whatever we needed it to do. This gearbox would allow our robot to literally wheelie off the line, and almost completely jump the plastic on the ramp. All this with blue supergrip belts!
Tips/Tricks you ask:
- We switched all gears to standard martin 20 pitch. Low was an 80:20 tooth high was 50:50
- We made a gear that was 16tooth and welded on a 48 tooth 0.7 onto it and pressed it onto the CIM for the first stage, the ratio worked well matching the CIM to the Drill. The end of the 0.7 mode gear was then turned down to fit in the bearing on the opposite side of the CIM motor. Now, this assembly was too large to be removed from the motor plate after the gear was pressed on, next year I suggest making the CIM motor mount removable keeping the gear intact.
- MAKE SURE THAT THE CENTER DOG CAN NOT BE IN HIGH AND LOW AT THE SAME TIME. We had one gearbox slightly narrow and the box went from full speed to no speed instantly, ripping the pinion off the drill and severely bending some teeth on the 0.7 mod mating gear.
- Harden the dogs and dog mate (In fact do like the picture shows and get rid of the dog mates, mill them into the gears) We ended up welding the dog mates onto the gears after shearing off the three screws that held each on.
- We omitted the carrier for the end of the drill motor, it was only supported on the motor can side.
- Lighten up all the gears lots, the box is heavy otherwise
- Air shifting worked fine, we are investigating using RC Servos for next year.
- Suggest using gear drive out of the gearbox, we were throwing chains at Buckeye until we made automatic chain guides for Buckeye.
- Suggest that everyone put a 90 degree break on the top and bottom of the gearbox plates for strength, ours are pretty warped after the season (But they still keep kicking)
If I think of more I will post.
