pic: Top View 1188 2016 Bot

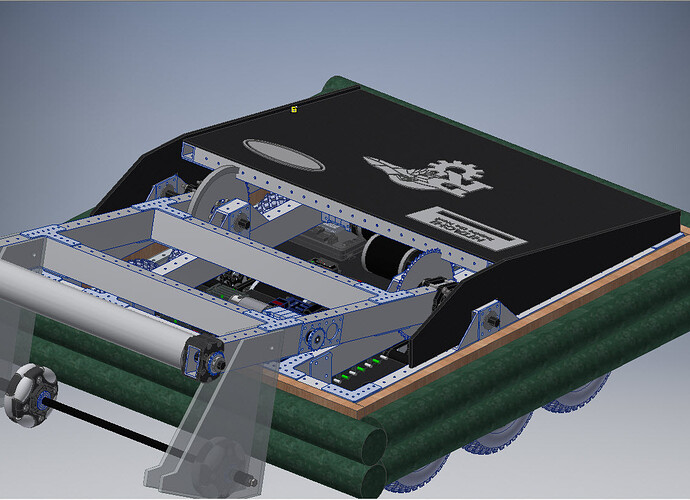

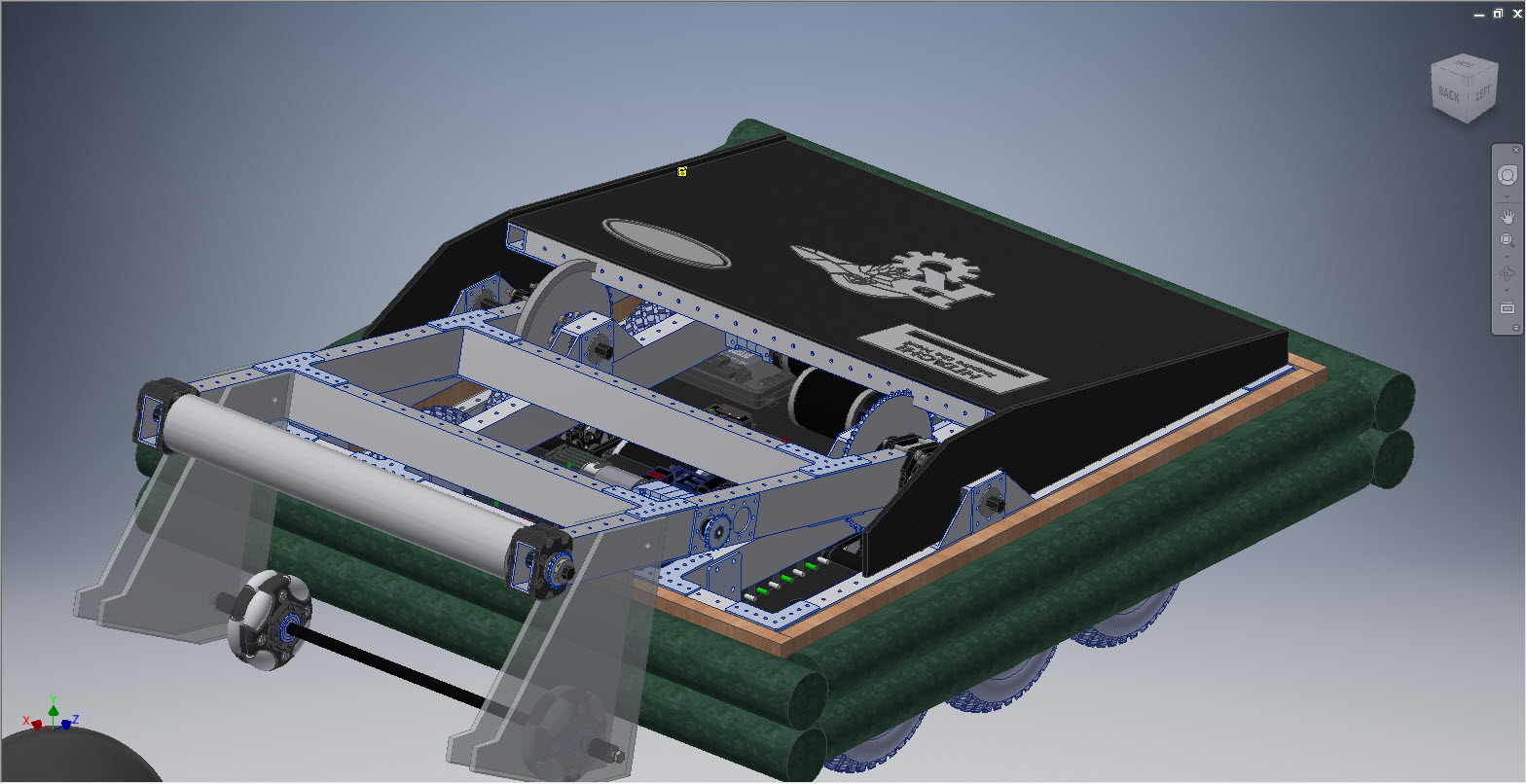

Still working on the arm and cover designs

We’re making progress on this years robot after learning a decent amount about the effects of 8" wheels on a drivetrain :yikes:

Web Viewable CAD - http://a360.co/1QlyjIS
Full STEP Download - https://pmcorp.sharefile.com/d-s70990c11ef848828

The big sprockets turning your intake system is interfering with your nameplate. I made a similar post on your bottom view picture. It might be a good idea to have a second person double check CAD before building starts (I’ve learned that the hard way :stuck_out_tongue: )

Thanks for the heads up. Actually fixed that about an hour ago. Just moved the 1x1 back about two inches. The “lid” is still a WIP.
