I am trying to find as many examples of omni directional drives and wheel as I can for an omni directional drive train idea I have for next year. Any pictures or links will be appreciated.
I know the michigan tech team had the kiwi drive last year…
And does the mighty mouse (team 45 b robot) robot have omniwheels on it?
I hope that’s what you want
Here is the omni wheel we used on the ball drive “Mighty Mouse”…
(copy & paste link)
http://www.pictars.com/0412003/omni-wheel.JPG
Here is the “Trick Wheel” that we used in 2000.
http://www.pictars.com/0412003/trick%20wheel%201.jpg
Here is the “Trick Wheel” that we used in 2000.
It says,“The bible says do not steal bandwith.”
If you want a good multi-directional drive I would try using the setup Chiefdelphi had in 2000 or Wildstang in 2002. For agility go with Delphi for power go with stang but modifications of course can be made to either lol if I was a team looking to build multidirectional drive I would try putting one together over the summer.
*Originally posted by wysiswyg *
**It says,“The bible says do not steal bandwith.” **
That’s the trick See my link above
If you want a good multi-directional drive I would try using the setup Chiefdelphi had in 2000 or Wildstang in 2002. For agility go with Delphi for power go with stang but modifications of course can be made to either lol if I was a team looking to build multidirectional drive I would try putting one together over the summer.
I forget there is a website that does sell omni wheels. Abeit they are pretty small and fairly expensive.http://www.omniwheel.com/frame-omniwheel.htm
Omniwheels! Whooo!

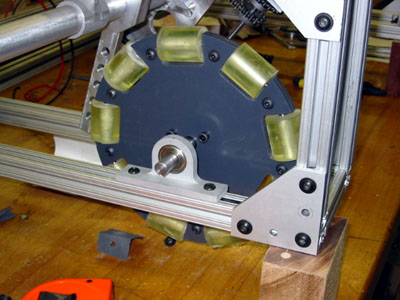

The below image shows this year’s omniwheels we used at the front of the bot with 65 grade urethane and lexan.
Here’s some pictures of our 2001 bot in it’s early stages. Don’t have any closeups of them, but you can get a pretty good view from these pictures…
http://www2.wildstang.org/gallery/2001_Build/ROBOTB_1?full=1
http://www2.wildstang.org/gallery/2001_Build/P2100017?full=1
*Originally posted by wysiswyg *
**It says,“The bible says do not steal bandwith.” **
Copy the address and paste it into your address bar. That should work…
Those omni wheels look incredible . . . do you guys design and then send them away to be made, do you design/build them, or do you just straight out build them!
here’s a dumb question, but I don’t have a lot of mechanical experience, but how do you guys attach the rollers to the wheel? Is there some sort of special screw or plug hat you use?
*Originally posted by Soukup *
**here’s a dumb question, but I don’t have a lot of mechanical experience, but how do you guys attach the rollers to the wheel? Is there some sort of special screw or plug hat you use? **
Nearly every design I have seen, including ours based on the Wildstang 2001 design, uses two ‘half plates’ to make up each wheel. In each half plate is milled a ‘half slot’ that holds the axles of the omni rollers. When the two are bolted together, the omni rollers are captured in the milled out areas of the wheels and the axles are cpatured in the two plates.
Since Pictars died I’m not sure if those links still work.
Here are some more pictures.
very, very cool. you guys use IFI stuff, right?
I wish FIRST would migrate to RC equipment. With the advent of cool stuff like synthesized frequency modulators, all you have to do is ‘dial-in’ your frequency… and at that point, it’s stil cheaper than the IFI systems. meh, YMMV
another great thing about that is that you can use cool stuff like this.
Here are some pictures of some of the stuff I worked on while on Cornell’s Robocup Team:
Exploded view of wheel
Engineering Drawing
Engineering Drawing of Lexan Hub
Engineering Drawing of Roller (small rollers around the wheel)
CAD View of Robot w/ Wheels
- Patrick
this is what 1083 used this year. http://www.chiefdelphi.com/forums/pictures.php?&action=single&picid=6118
