Team 401 is proud to release CAD and technical documentation for our 2022 and 2023 robots as well as for our new battery cart and driver station. Questions are welcome!

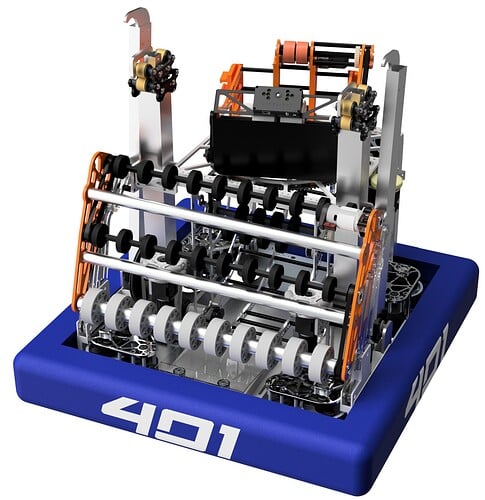

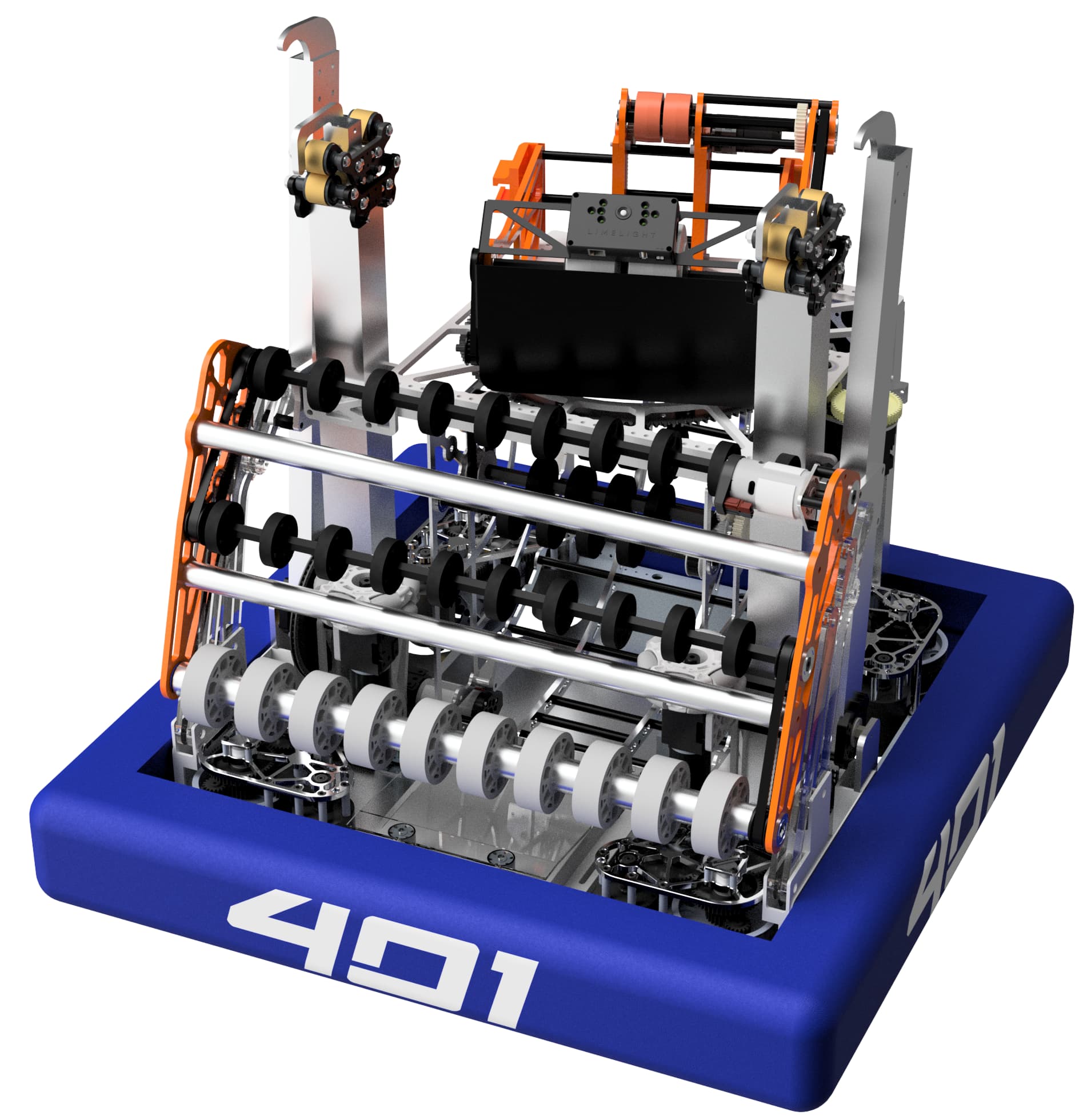

2022 Robot - Jörmungandr

2022 closed.PNG
2022 closed.PNG1902×1960 231 KB
robot_2022
robot_20221920×2221 445 KB

Tech Binder and Onshape Doc

Robot Features

  • SDS MK4i L2 swerve modules
  • Motor actuated, full width 6 bar intake
  • 540° turret range
  • Continuously variable hood with top roller
  • Dual Thrifty telescopes + intake hooks for traversal climb

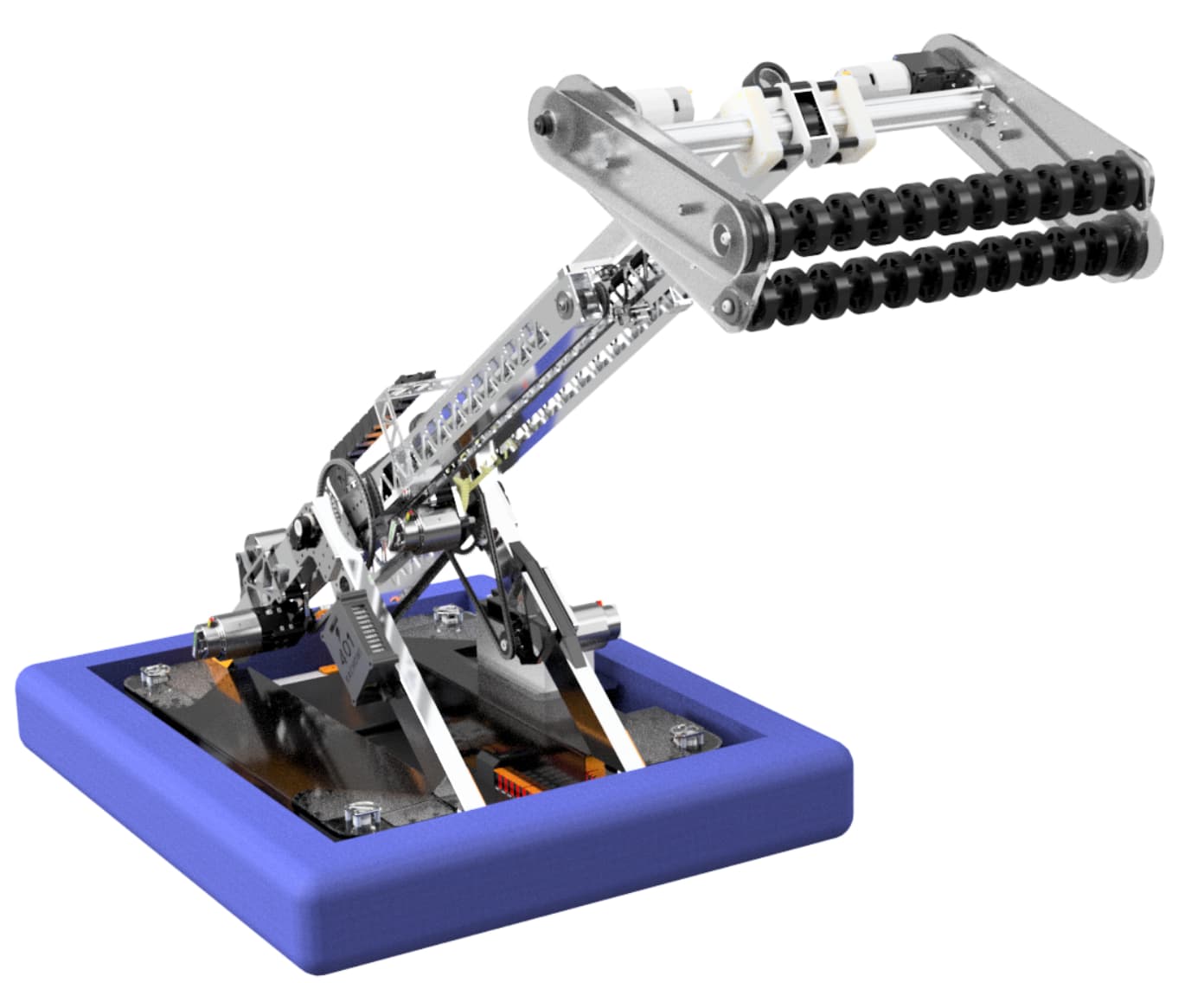

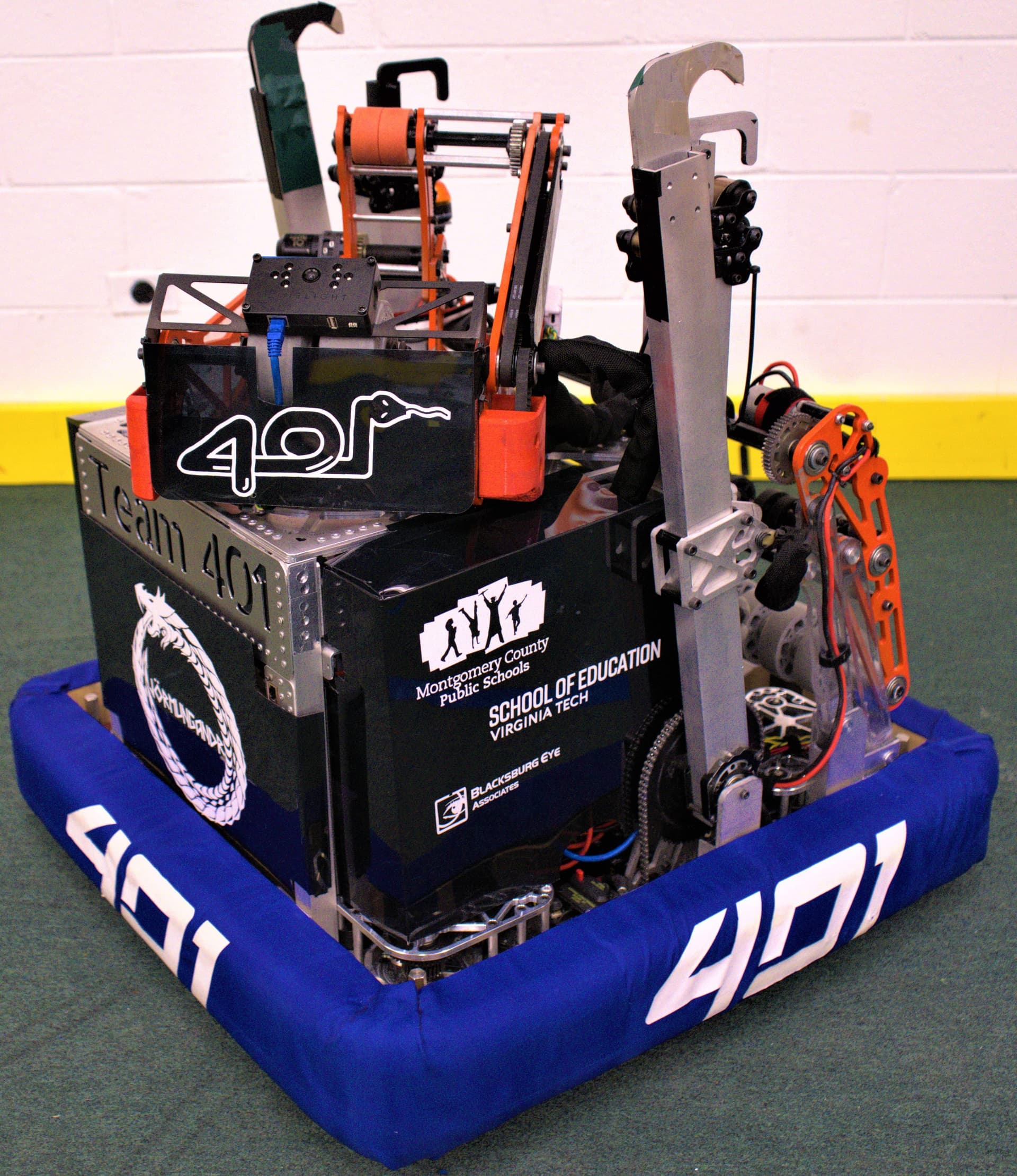

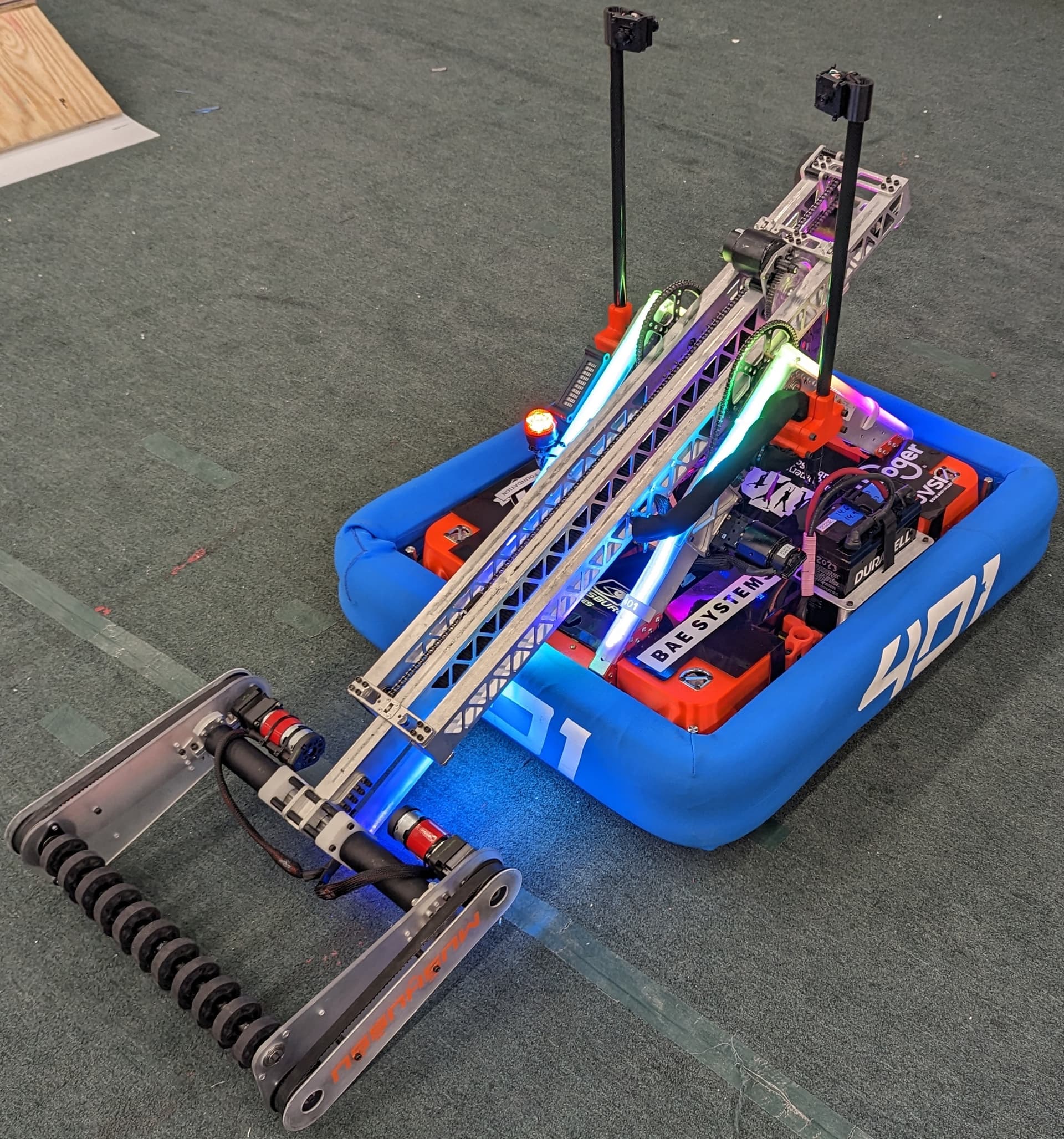

2023 Robot - Mušḫuššu

robutt
robutt1392×1136 69.9 KB
PXL_20230401_200512942.MP
PXL_20230401_200512942.MP1920×2055 560 KB

Tech Binder and Onshape Doc

Robot Features

  • SDS MK4i L2 swerve modules
  • “Not Quite Pink” Arm with 250° of rotational range and 30" of extension
  • Belt in tube driven wrist with 330° of rotational range
  • Grabs cone flange or tip from any orientation from both sides
  • Scores cones and cubes out either side of robot
  • Hour meter to track robot enable time using toggleable PDH slot
  • Toggle switches for brake/coast mode for all motors and for all LEDs on the robot

Battery Cart

Battery Cart
Battery Cart772×1962 109 KB
PXL_20230323_011441147.PORTRAIT
PXL_20230323_011441147.PORTRAIT1581×3937 421 KB

Onshape Doc

Features

  • 3x Dual Pro RS3 Chargers
  • 9 battery slots
  • COTS hand truck for base frame
  • Constructed from plasma cut 12 gauge steel plate
  • Makes moving batteries easy for any team member
  • Minimizes floor space used for batteries in pit

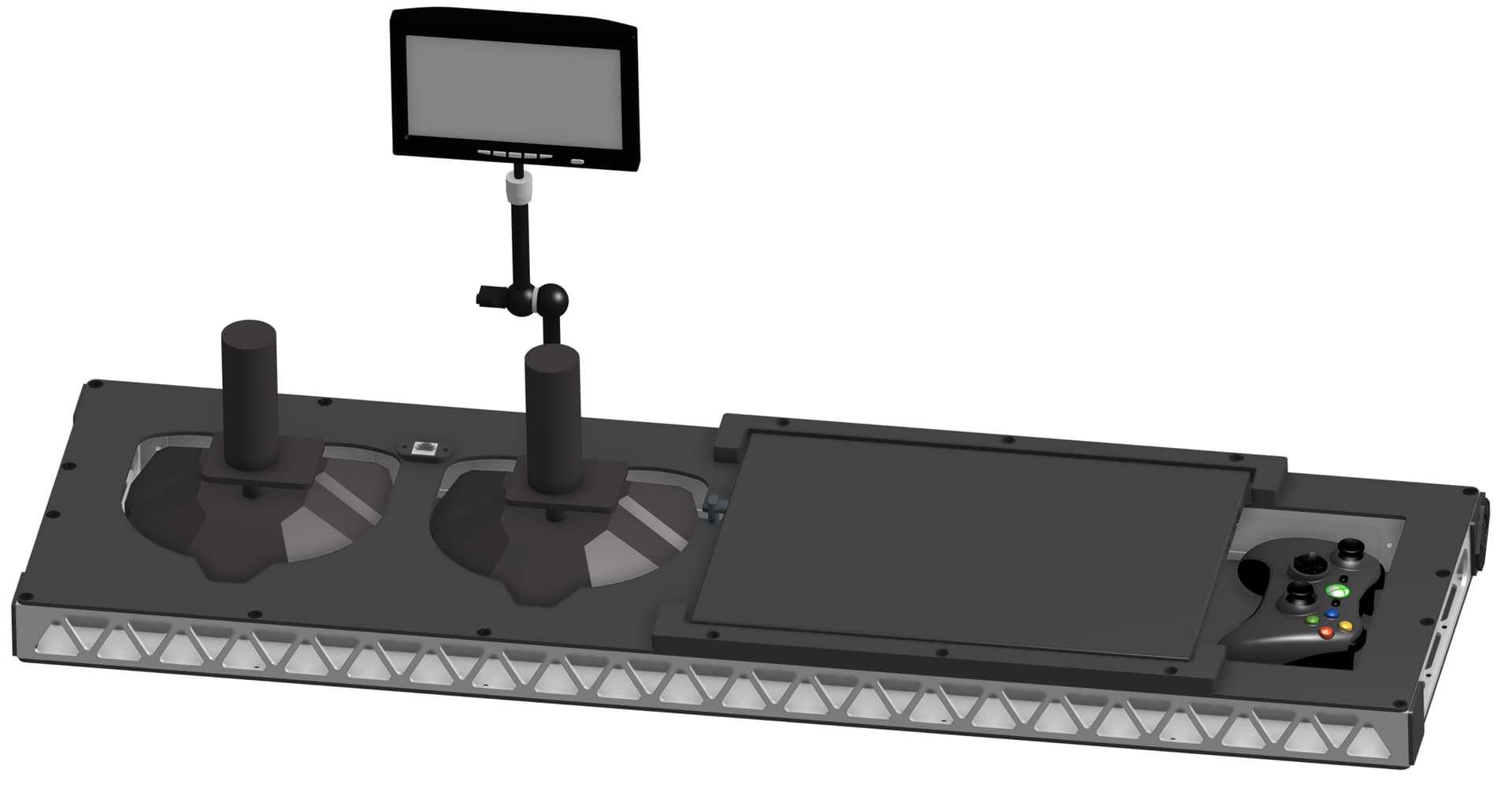

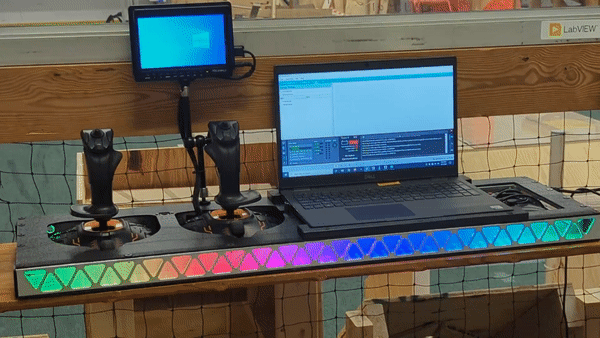

Driver Station

driver_station
driver_station1920×1015 48.4 KB

ds

Onshape Doc

Features

  • 2x Thrustmaster t.16000m joysticks
  • 1x Xbox 360 controller
  • 200+ RGB LEDs with serial comms to laptop
  • Heads up display on SmallRig arm
  • Ethernet bulkhead for connecting to field
  • Integrated C14 power plug for charging laptop
  • USB C dock to connect all peripherals
